Product Description

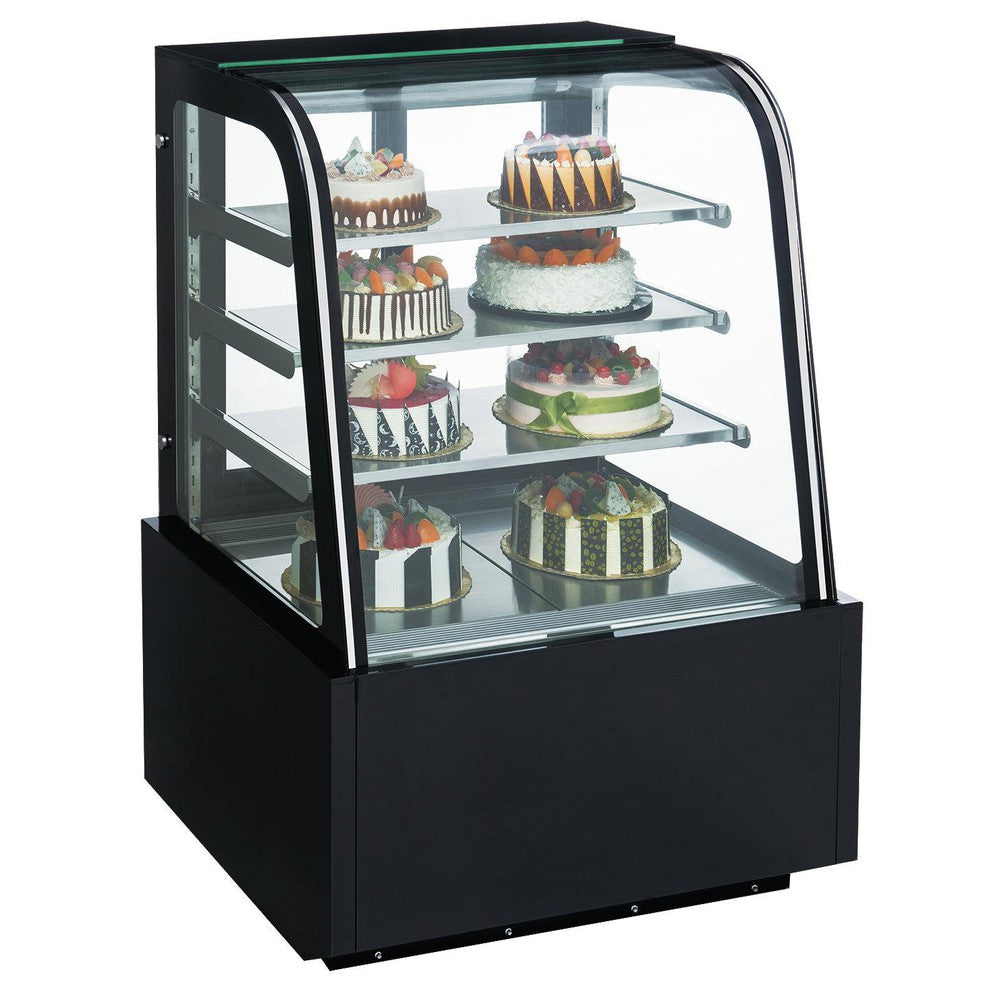

The Dukers DDM36R-CB is a curved glass refrigerated cake showcase for bakeries, patisseries, cafes and hotel pastry counters. It displays product on three shelves in a 36" wide cabinet and holds 33°F to 41°F, the range that keeps cream and mousse fillings safe without stiffening buttercream or drying sponge.

Why the curved pane

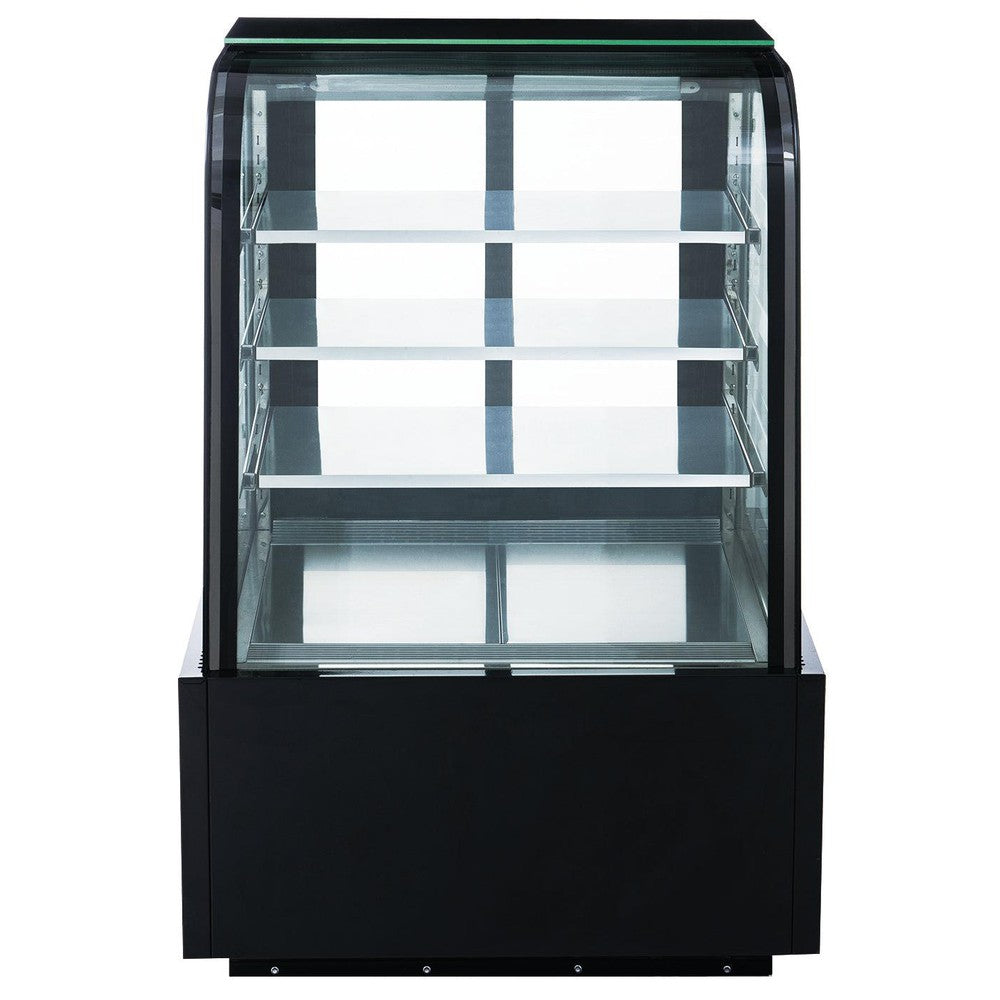

The bowed front glass carries the display surface further forward at eye level than a vertical pane does, so a customer standing at the counter sees the top of each shelf rather than its leading edge. That is the whole argument for curved glass in a pastry case: decorated tops are what sell cake, and a curved pane presents them. The trade-off is footprint — this cabinet runs 29-7/8" deep and 53-1/2" tall against the straight-glass version's 28-1/2" and 51", so check your counter run before ordering.

Lighting and controls

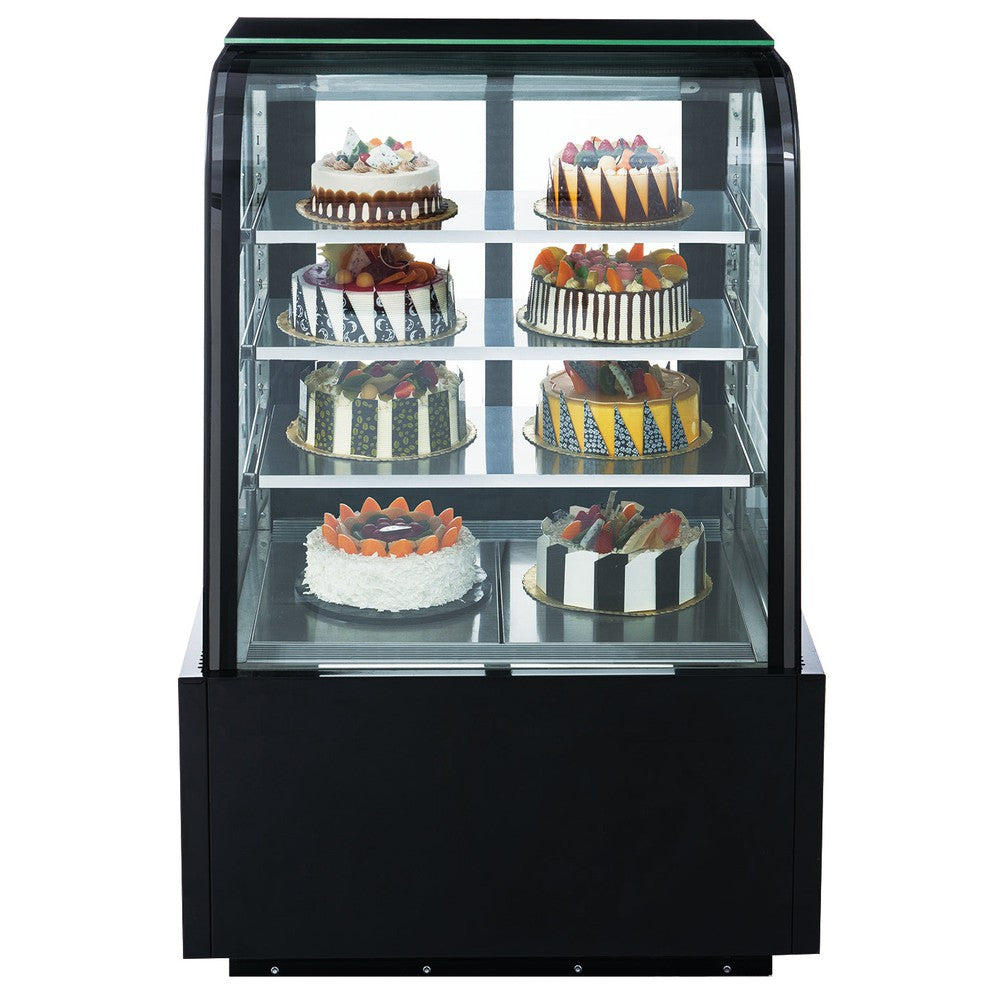

Interior and canopy LED lighting is switched from the right side, so staff can light the case for trade and kill it at close without touching refrigeration. A digital readout shows actual cabinet temperature rather than a dial setting, which is what a health inspector and your own temperature log both want to see. Defrost runs automatically, so there is no scheduled shutdown and no temperature swing while the cycle completes.

Construction and refrigeration

Stainless steel inside and out in a black finish, over a copper evaporator coil — copper moves heat more efficiently than aluminum and holds up better to the humidity cycling a display case sees every time it is opened. The 4/9 HP system is charged with R290 natural refrigerant, whose global warming potential sits in the single digits rather than the thousands, and it runs on a standard NEMA 5-15P outlet.

Specifications

Model DDM36R-CB
Type Refrigerated bakery display case, curved glass with side glass
Exterior dimensions (W x D x H) 36" x 29-7/8" x 53-1/2"
Crate dimensions (W x D x H) 39-3/8" x 33-3/8" x 56-1/8"
Net weight 419 lbs
Gross weight 474 lbs
Temperature range 33°F to 41°F
Compressor 4/9 HP
Electrical NEMA 5-15P plug
Refrigerant R290 natural refrigerant
Evaporator Copper
Defrost Automatic
Shelves 3
Lighting Interior and canopy LED with switch on the right side
Display Digital temperature readout
Construction Stainless steel interior and exterior, black finish
Certifications Sanitation Listed
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
