Product Description

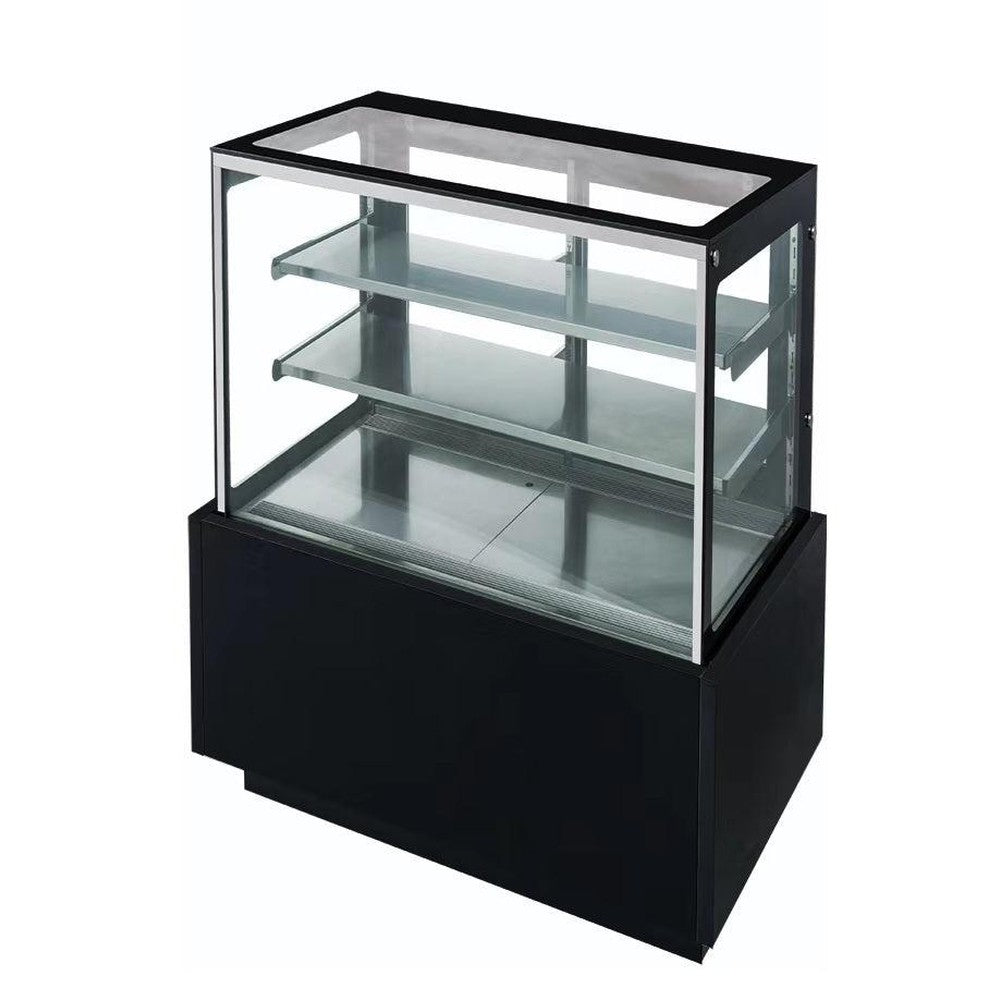

The Dukers DDM36R is a refrigerated cake showcase for bakeries, cafes, delis and pastry counters that sell by sight. It presents product on three shelves behind straight front glass in a 36" wide cabinet, holding 33°F to 41°F — the band that keeps cream fillings, mousses and buttercream safe without drying the crumb.

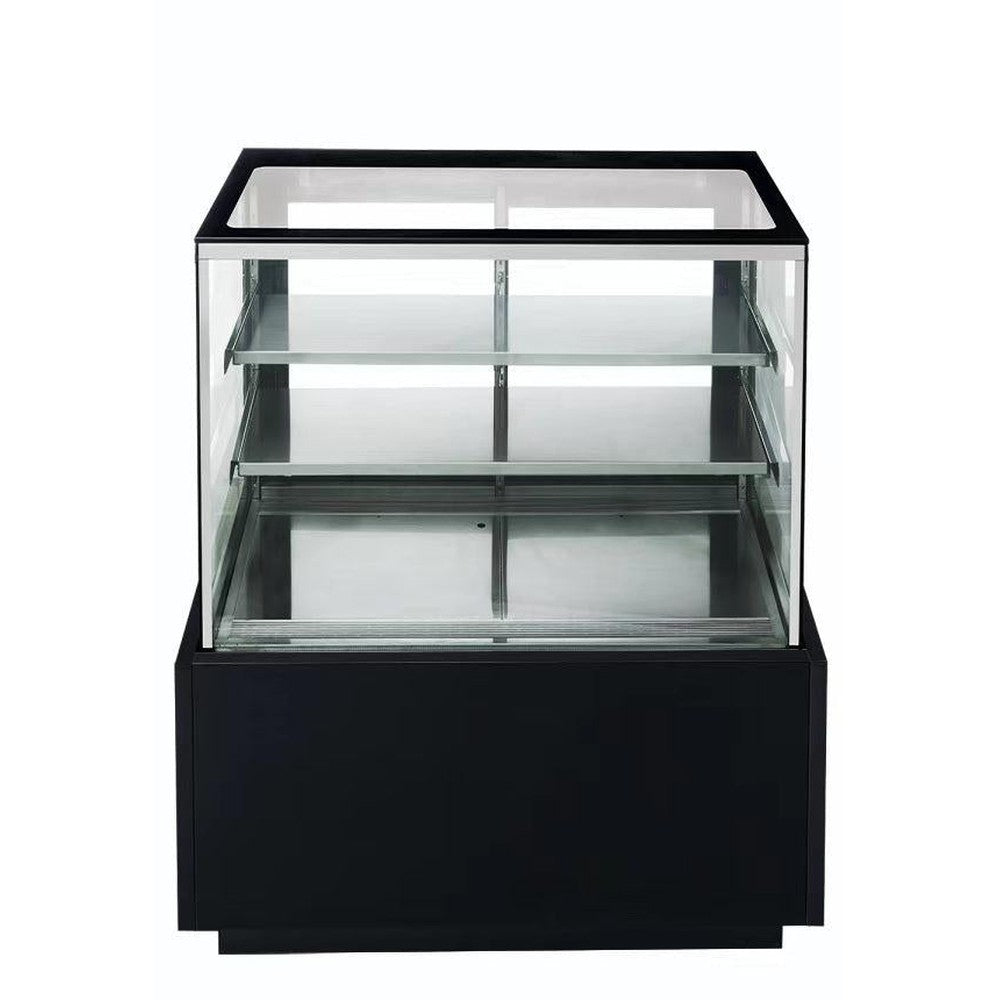

Straight glass and side panels

Straight front glass sits vertical rather than bowed, which keeps reflections predictable under overhead lighting and gives a flat, undistorted view of decorated product — a curved pane subtly bends piping and lettering on a cake face. Glass side panels open the case at both ends, so it reads as a display island rather than a wall unit and works when customers approach from an angle. The vertical face also means the case takes up its exact 28-1/2" of counter depth with no bowed overhang.

Lighting and temperature control

Interior and canopy LED lighting run on a switch, so the case can be lit for trade and dimmed at close without shutting down refrigeration. A digital temperature display puts the actual cabinet reading in front of staff rather than a dial position, which is what makes a HACCP temperature log honest. Defrost is automatic, so there is no manual cycle to schedule and no drift while it runs.

Construction and refrigeration

Stainless steel interior and exterior in a black finish, with a copper evaporator coil — copper transfers heat better than aluminum and stands up to the repeated humidity swings a display case sees every time the doors open. The 4/9 HP system uses R290 natural refrigerant, whose global warming potential is in the single digits rather than the thousands, and plugs into a standard NEMA 5-15P outlet.

Specifications

Model DDM36R
Type Refrigerated bakery display case, straight glass with side glass
Exterior dimensions (W x D x H) 36" x 28-1/2" x 51"
Crate dimensions (W x D x H) 39-3/8" x 33-1/2" x 56-1/4"
Net weight 441 lbs
Gross weight 496 lbs
Temperature range 33°F to 41°F
Compressor 4/9 HP
Electrical NEMA 5-15P plug
Refrigerant R290 natural refrigerant
Evaporator Copper
Defrost Automatic
Shelves 3
Lighting Interior and canopy LED with switch
Display Digital temperature readout
Construction Stainless steel interior and exterior, black finish
Certifications Sanitation Listed
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this merchandiser with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
