Product Description

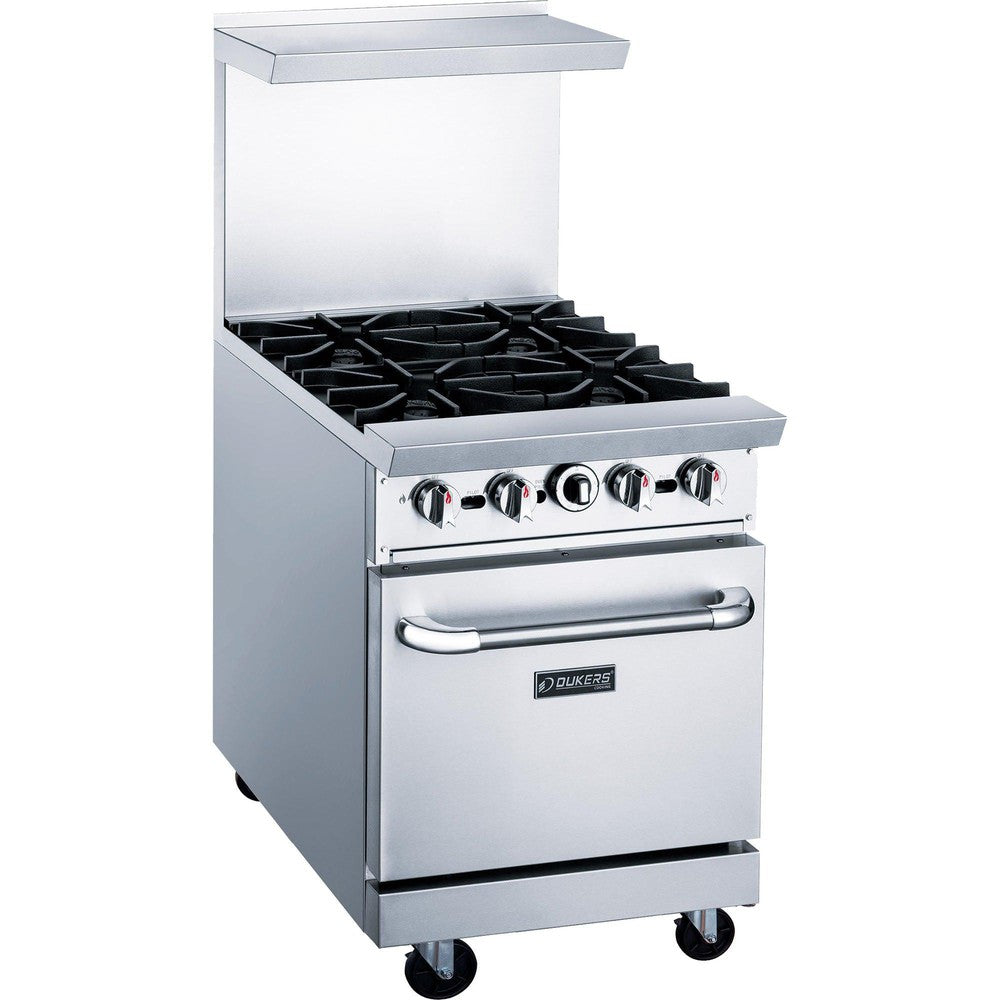

The Dukers DCR24-4B is a 24-inch heavy-duty gas range with four open burners over a full standard oven, sized for restaurants and kitchens where line space is tight but the cooking still has to be commercial grade. Total output is 150,000 BTU/H on natural gas and 162,000 BTU/H on LP.

Four open burners on a 24 inch footprint

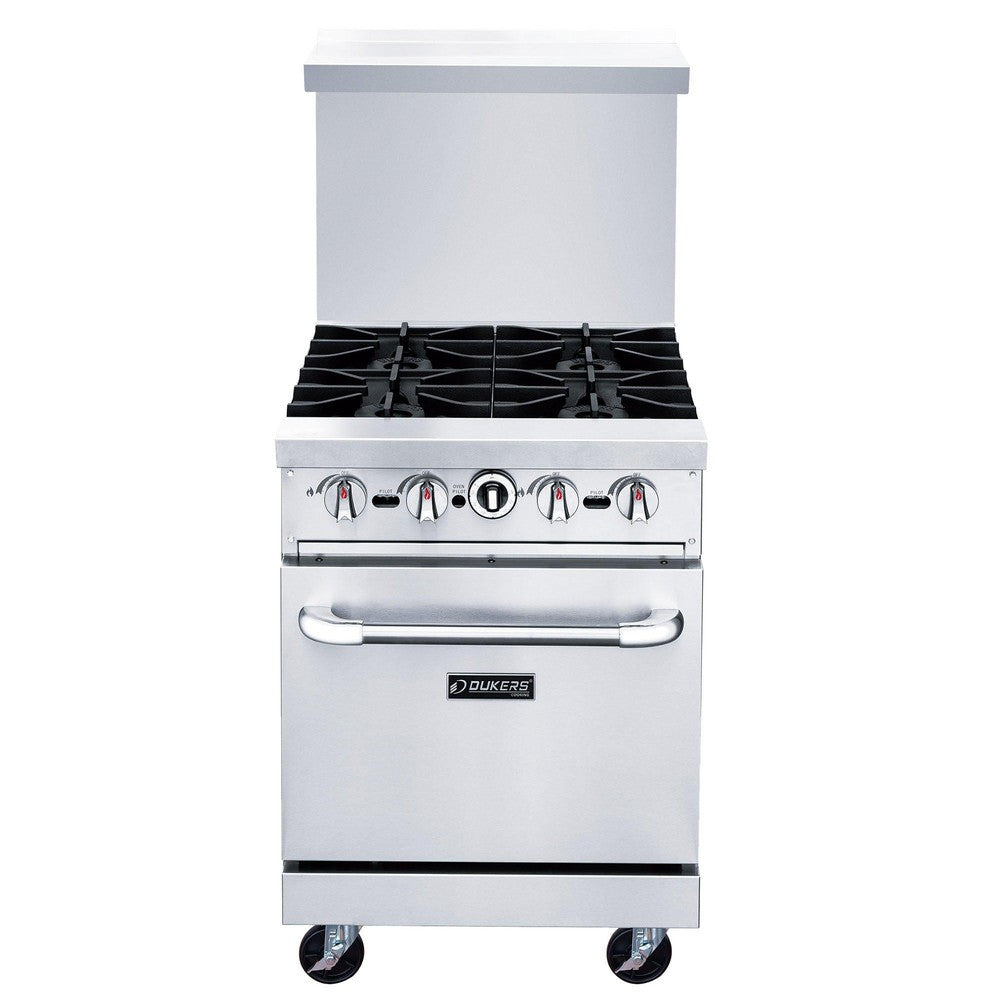

Four burners sit under heavy-duty 12" x 12" removable cast iron grates across a 24" x 24" working area. Cast iron holds heat between pans, which matters when a line is turning covers quickly and each new pan would otherwise pull the burner temperature down. The grates lift straight out, so the burner deck and the drip pan underneath can be cleaned properly rather than wiped around.

Standard oven underneath

The full-depth oven below the burners runs from 175°F to 500°F, so it covers holding and slow roasting as well as finishing and baking. It ships with two chrome oven racks on multi-position guides, and the interior is porcelain enamel — a smooth, non-porous surface that spilled sugar and grease release from far more easily than bare steel.

Gas supply and installation

The range connects through a 3/4" NPT rear gas connection and ships with a pressure regulator, so there is no separate regulator to source at install. It is configured for natural gas or LP, and the two ratings differ: 150,000 BTU/H total on natural gas and 162,000 BTU/H on LP. Confirm the gas type at the site before ordering. Six-inch locking casters let a single person roll the unit out for cleaning behind the line and lock it back in place.

Specifications

Model DCR24-4B
Type Heavy-duty gas range, 4 open burners with standard oven

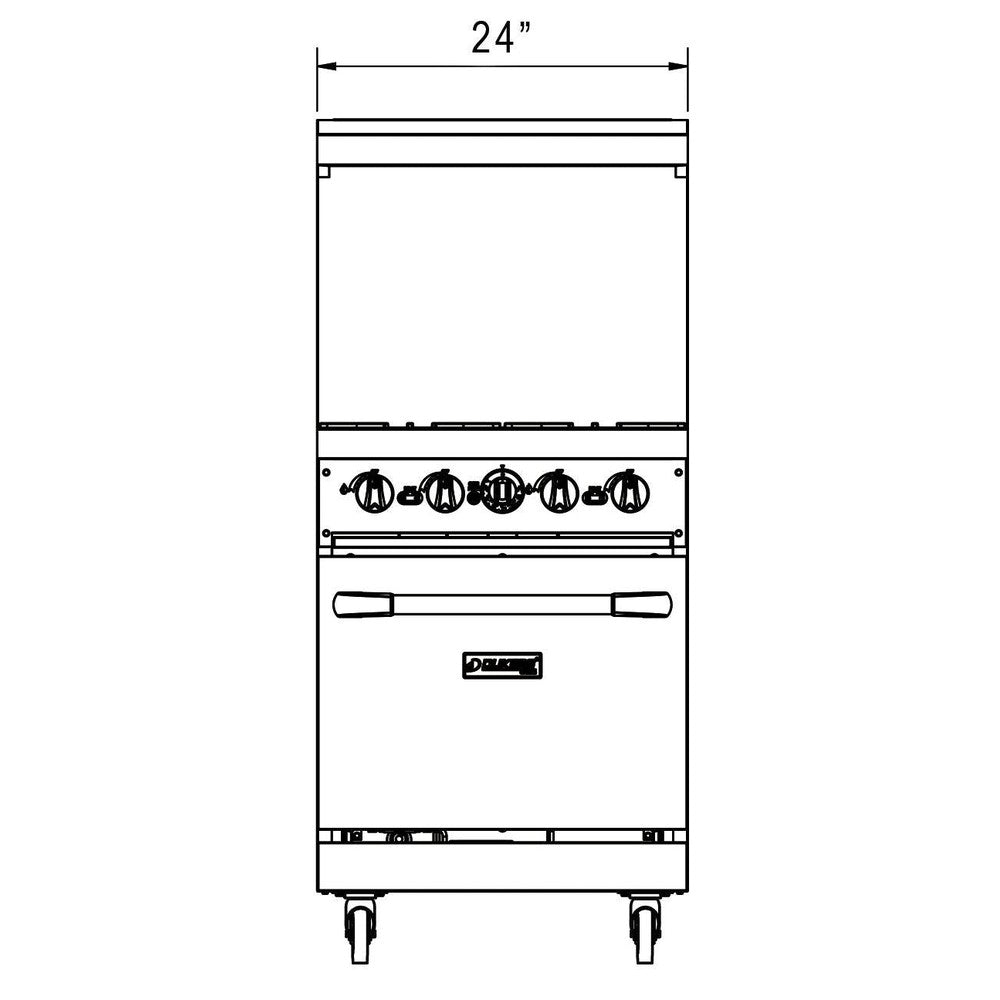

Exterior dimensions (W x D x H) 24" x 31-1/2" x 56"
Crate dimensions (W x D x H) 26" x 36-4/5" x 38-1/5"
Net weight 267.94 lbs
Shipping weight 335.94 lbs
Total output, natural gas 150,000 BTU/H
Total output, LP 162,000 BTU/H
Open burners 4
Cooking surface 24" x 24" working area, 12" x 12" removable cast iron grates
Ovens 1 standard oven, porcelain enamel interior
Oven temperature range 175°F to 500°F
Oven racks 2 chrome racks, multi-position guides
Gas connection 3/4" NPT rear connection, regulator included
Construction Stainless steel front, back, sides, kick plate, backguard and overshelf

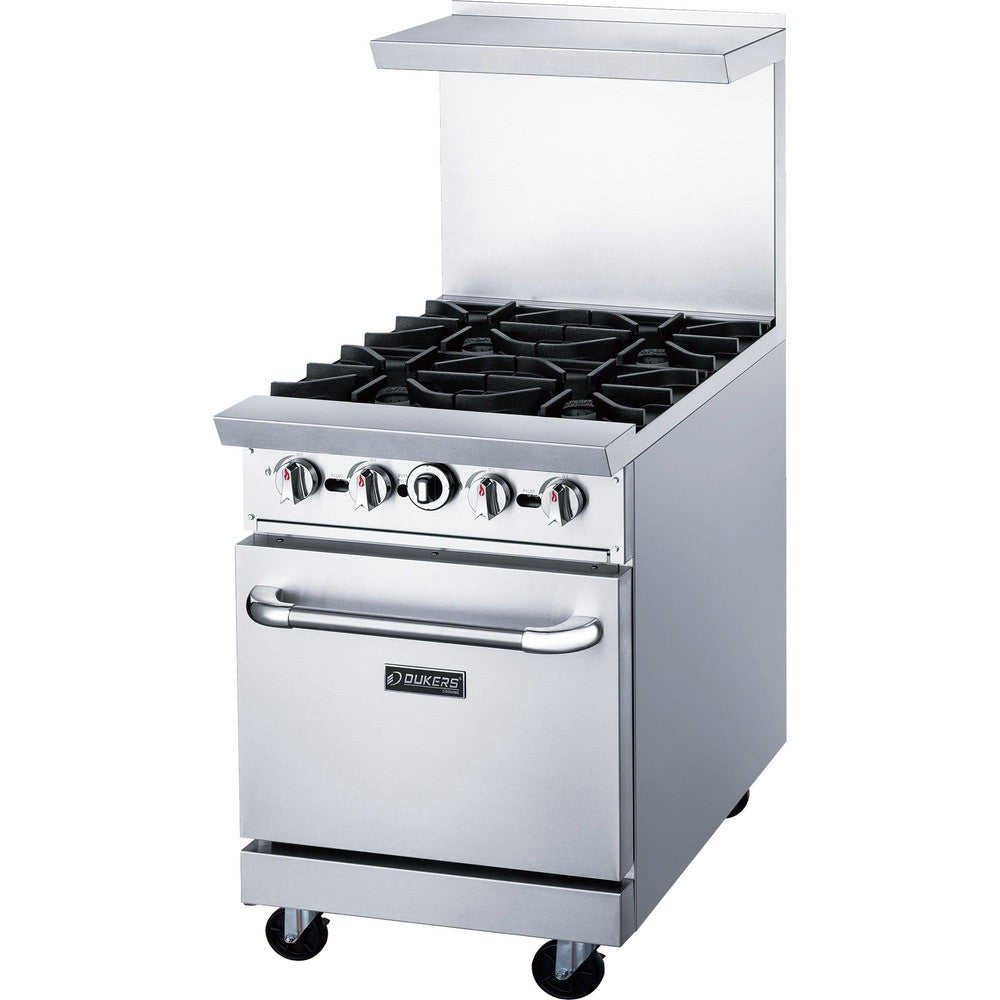

Casters 6", with locks
Certifications Conforms to NSF/ANSI 7 (ETL)
Warranty 1-year parts and labor

Warranty

Dukers covers this unit with a 1-year parts and labor warranty from the date of purchase, the standard term on Dukers cooking equipment.
