Product Description

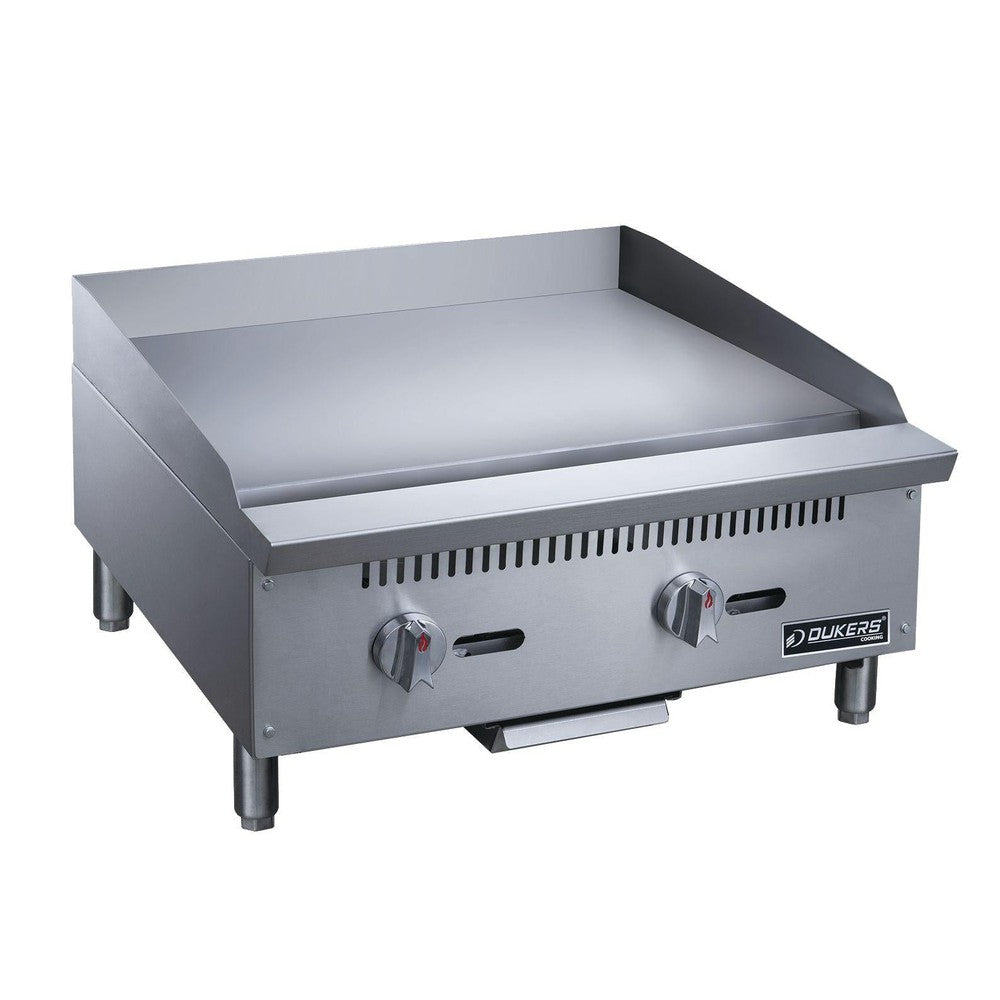

The Dukers DCGM24 is a two-burner countertop gas griddle putting 60,000 BTU under a 24-inch wide plate. It is the size most kitchens reach for first: enough surface to run two distinct zones — one hot for searing, one held back for holding and eggs — without giving up more than two feet of line space.

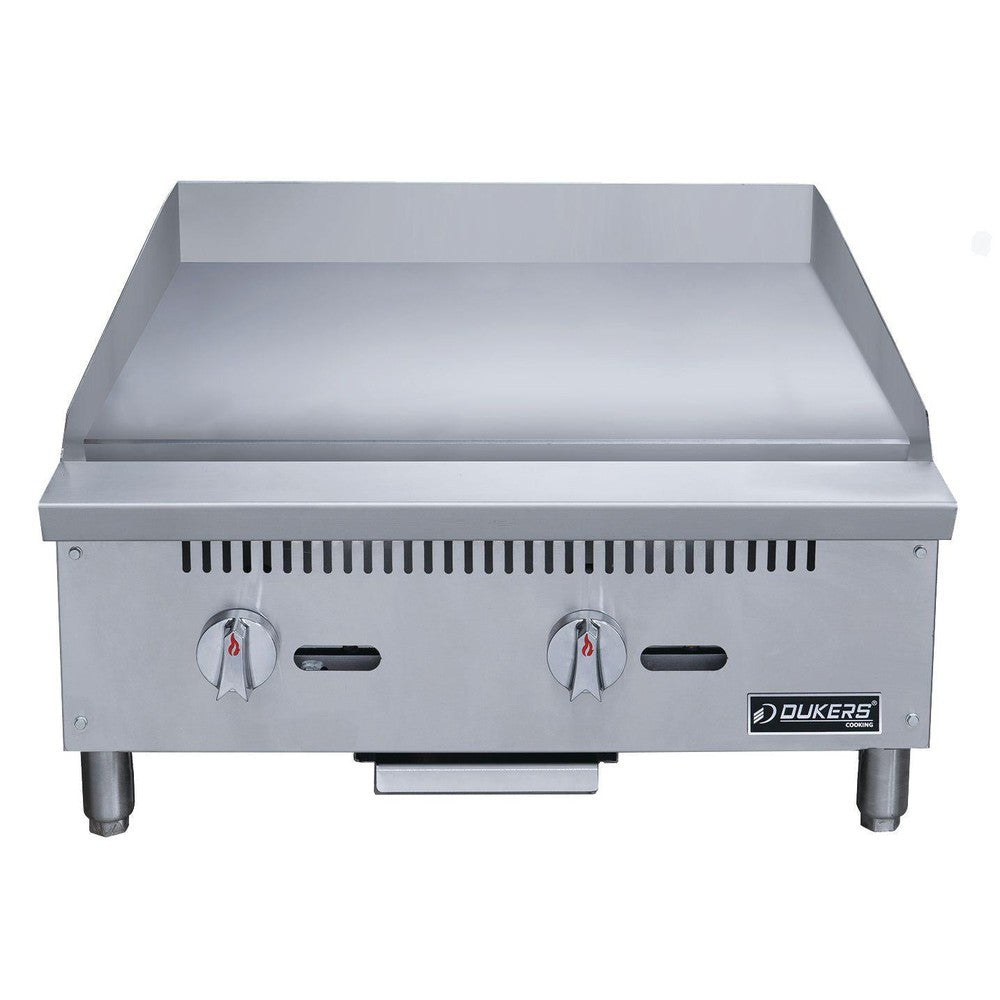

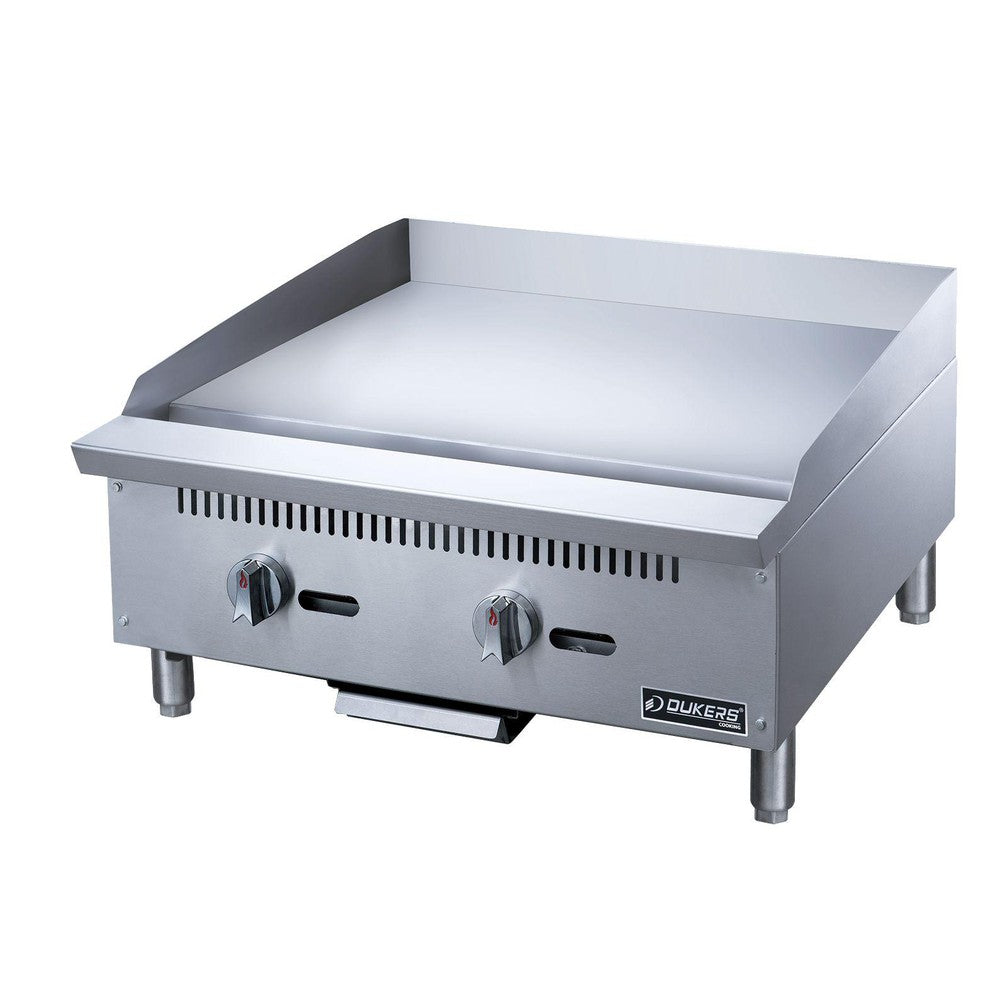

3/4-inch polished steel plate, 20-1/2 inch depth

The cooking surface measures 23.86" x 20.50" in 3/4-inch thick polished steel. Thickness governs how a griddle behaves when it is busy: a thicker plate stores more heat, so dropping a full load of cold product does not crater the surface temperature. Three-quarter inch heats up faster from cold than a 1-inch plate while still holding steady through a rush, which is the trade most breakfast and burger lines want. The DCGM line runs a 20-inch-deep plate; Dukers' separate DCGMA line pairs a 1-inch plate with a deeper 24-inch surface.

Two independently controlled zones

Each 30,000 BTU burner has its own manual valve, one per 12 inches of width. Manual control puts flame level directly in the cook's hands rather than letting a thermostat cycle it, so you can hold the left half hard for a sear and idle the right half for holding without waiting on a control loop. It also removes the thermostat bulb and capillary from the service picture, which is one of the more common failure points on griddles that have them.

Gas supply and installation

Configured for natural gas or propane through a 3/4-inch NPT inlet, at 4 inches water column on natural gas or 10 inches on propane. The unit stands 15-1/4 inches tall and needs 30 inches of counter depth, so confirm your stand or worktop can take roughly 175 pounds plus product before you set the line layout.

Specifications

Model DCGM24
Type Countertop gas griddle, manual controls
Cooking surface 23.86" x 20.50"
Griddle plate 3/4" thick polished steel
Exterior dimensions (W x D x H) 24" x 30" x 15-1/4"
Crate dimensions 26-1/8" x 32-5/8" x 20-1/2"
Net weight 176.37 lbs
Total BTU 60,000 BTU/H
Burners 2 at 30,000 BTU/H each
Controls Independent manual control every 12"
Gas type Natural gas or propane
Gas inlet 3/4" NPT
Gas pressure Natural gas 4" WC; propane 10" WC
Warranty 1-year parts and labor

Warranty

Dukers covers this griddle with a 1-year parts and labor warranty from the date of purchase, the standard term on Dukers cooking equipment.
