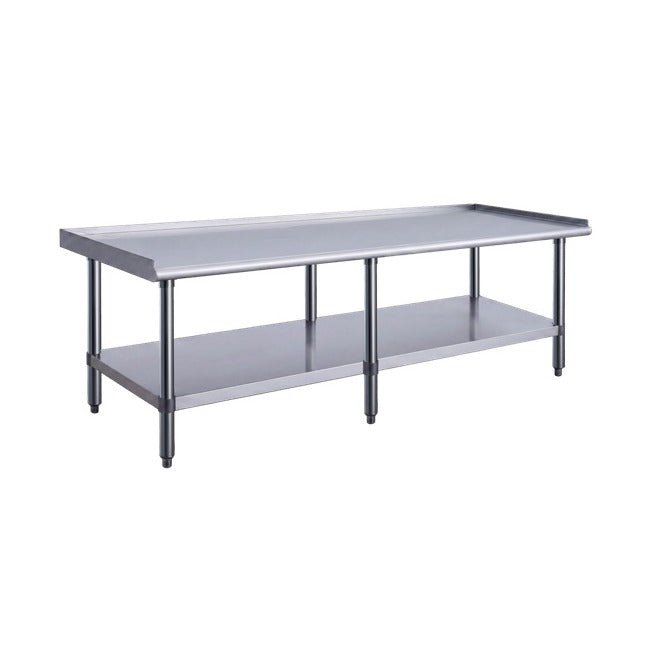

Dukers DCES-3072 72 inch stainless steel equipment stand with undershelf and adjustable bullet feet

Product Description

The Dukers DCES-3072 is a 72-inch stainless steel equipment stand built to carry a full run of countertop cooking equipment at working height. The top measures 72" x 30" and sits 24" off the floor, with a full-length undershelf below for pans, containers and small wares.

Gauge and stainless grade

The top surface and undershelf are 18 gauge 430 stainless steel. Over a 72" span the gauge is the single spec worth checking: 18 gauge keeps the surface flat between the legs under a heavy equipment line, where 20 or 22 gauge would visibly dish. The 430 grade handles cook-line heat and grease. Legs, hat channel bracing and leg sockets are 201 stainless steel.

Load rating and setup

The top shelf is rated to 530 lbs and the undershelf to 400 lbs, so a 72" griddle or a mix of three or four countertop units is comfortably within limit. Adjustable bullet feet level the stand on an uneven floor and let you bring the top flush with adjoining ranges. It ships flat in a 5-7/8"-tall carton, which keeps a 72" unit manageable to move into place.

Specifications

Model DCES-3072
Type Equipment stand with undershelf
Exterior dimensions (W x D x H) 72" x 30" x 24"
Crate dimensions (W x D x H) 72-7/8" x 30-3/4" x 5-7/8"
Net weight 87.08 lbs
Gross weight 99.21 lbs
Top and undershelf 18 gauge, 430 stainless steel
Legs, hat channel and sockets 201 stainless steel
Shelves 2 (top surface and undershelf)
Top shelf capacity 530 lbs
Undershelf capacity 400 lbs
Feet Adjustable bullet feet
Certifications NSF/ANSI 2
Warranty 90 days from date of purchase

Warranty

Dukers covers this stainless steel fabrication product for 90 days from the date of purchase.
