Product Description

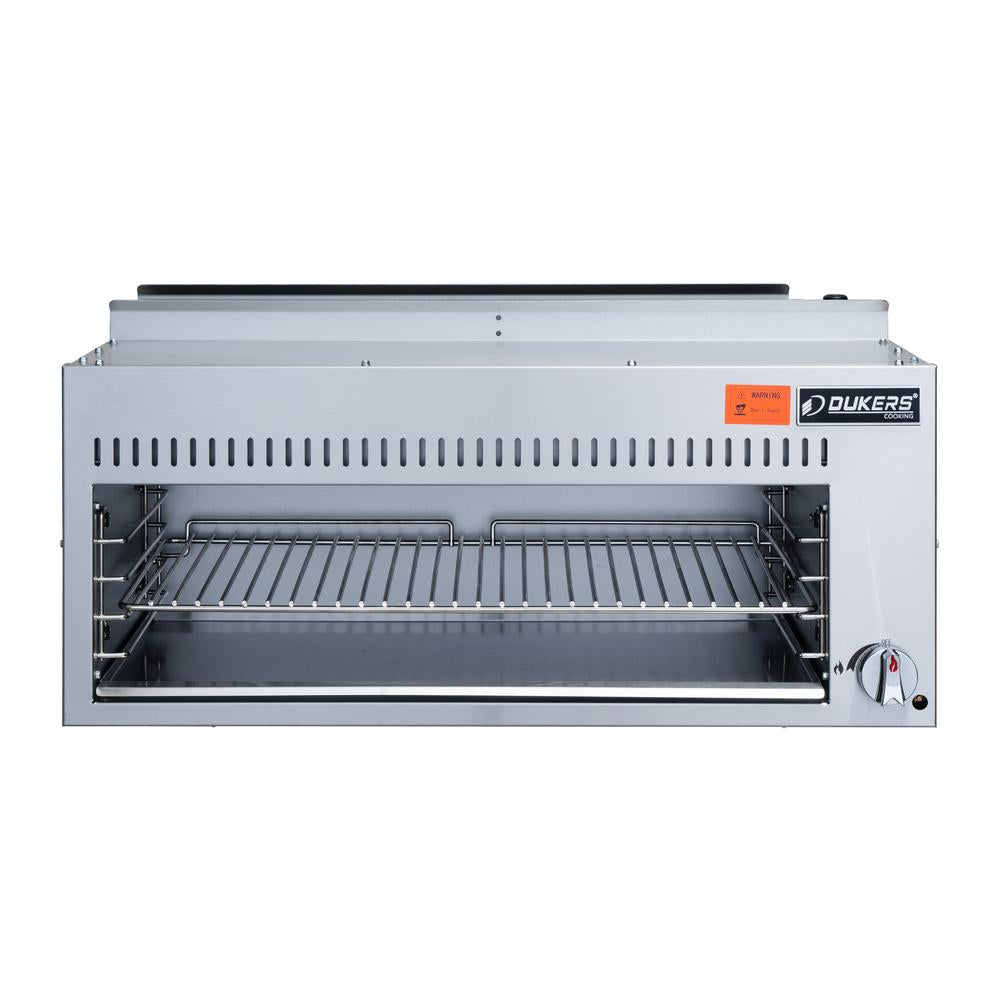

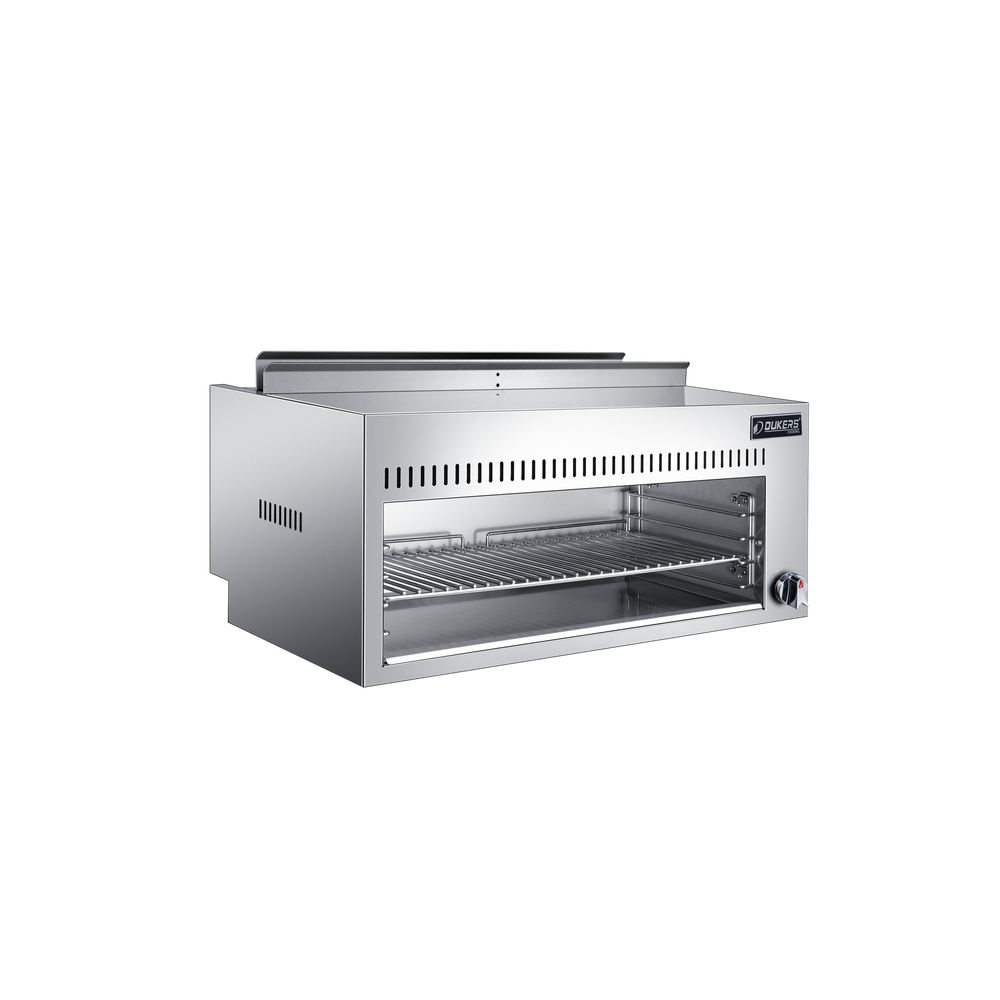

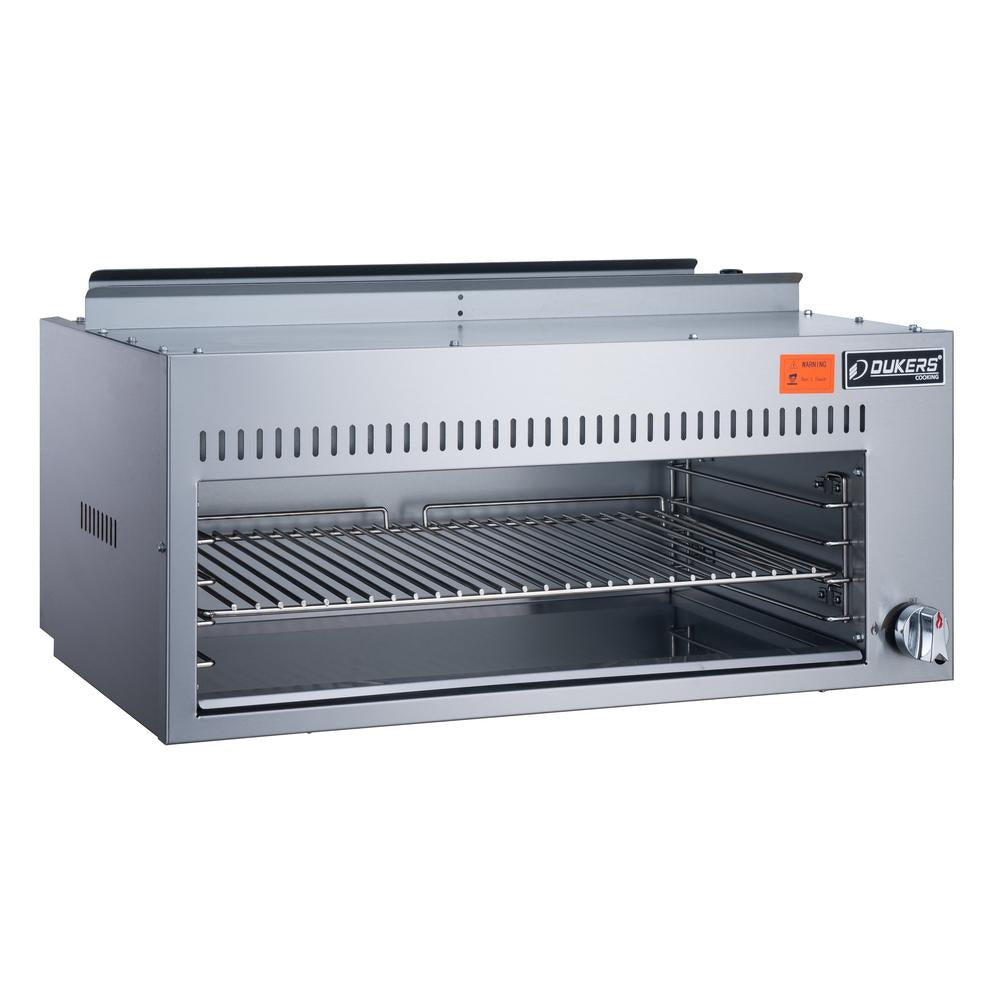

The Dukers DCCM36 is a 36-inch gas cheese melter for pizzerias, sandwich shops and Mexican kitchens that finish plates under heat rather than cooking them there. A single 35,000 BTU/H burner covers an 11.81" x 23.62" work area, in a cabinet 36 inches wide, 18 inches deep and 17-7/16 inches high.

Sized for finishing, not cooking

A cheese melter runs at lower intensity than a salamander broiler, and that is the point. 35,000 BTU/H over the full 36-inch width is enough to melt cheese, brown a top and warm a plate through without driving colour onto the food before the cheese has gone. For an operation putting out nachos, subs, French onion soup or finished pizzas, that means you can leave the unit on through service and pass product under it continuously rather than watching each plate.

Roll-out grid rack

The grid rack assembly rolls out toward the operator for loading and unloading instead of requiring you to reach into a hot cavity. On a wall- or shelf-mounted finishing unit this is the difference between a safe station and burned forearms, and it makes loading a full-width run of plates a single motion. The broiler grid lifts out entirely for cleaning, which matters because melted cheese is what actually fouls these units.

Dual fuel and gas supply

The DCCM36 runs on natural gas at 5" W.C. or propane at 10" W.C., rated 35,000 BTU/H on either fuel, through a 3/4" NPT inlet. Because the burner output is identical between fuels, a site converting from natural gas to LP does not lose finishing capacity.

Specifications

Model DCCM36
Type Gas cheese melting oven
Exterior dimensions (W x D x H) 36" x 18" x 17-7/16"
Work area 11.81" x 23.62"
Crate dimensions (W x D x H) 42" x 24-3/4" x 23-3/8"
Net weight 93 lbs
Shipping weight 139 lbs
Output — natural gas 35,000 BTU/H
Output — propane 35,000 BTU/H
Burners 1
Gas connection 3/4" NPT
Gas pressure Natural gas 5" W.C.; propane 10" W.C.
Rack Roll-out grid rack assembly, removable broiler grid
Warranty 1-year parts and labor

Warranty

Dukers covers this cooking equipment with a 1-year parts and labor warranty from the date of purchase.
