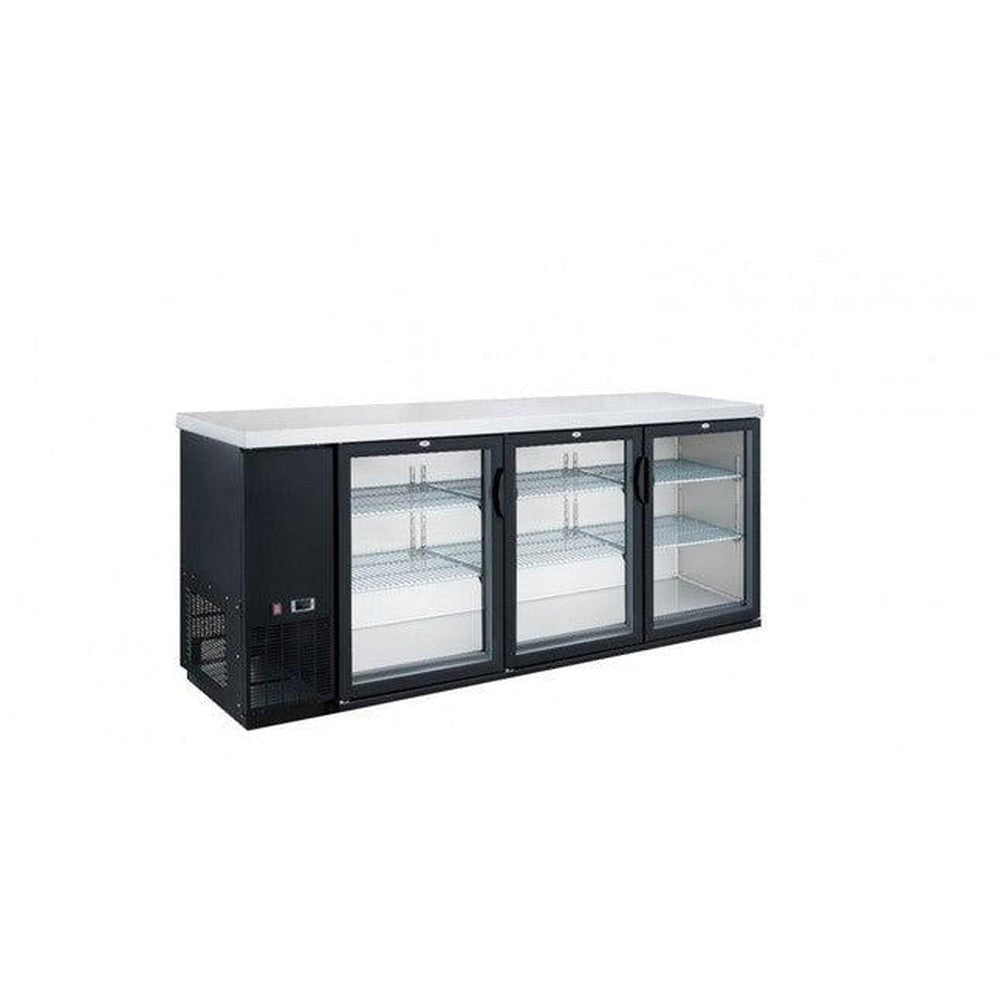

Dukers DBB72-H3 three swinging glass door back bar cooler, front view

Product Description

The Dukers DBB72-H3 is a three-door back bar cooler carrying 19.20 cu. ft. in a 70-3/8" wide, 38-3/4" tall cabinet. It is the size high-volume bars reach for when a two-door cooler runs dry before last call and running a second unit is not an option.

Three doors, three zones of product

Splitting the cabinet across three hinged doors means a bartender only ever opens a third of the box at a time. Over a night with hundreds of door openings, that keeps far more cold air inside than a two-door cooler of the same volume, and it lets you assign a door per product family — draft-adjacent bottles at the well, wine and mixers at the far end. Six adjustable wire shelves divide the interior and all of them lift out for cleaning.

Glass and lighting

The doors use double-pane tempered glass with UV blocking. The second pane keeps the outer surface near room temperature so it does not fog or sweat in a humid room, and the UV coating slows the light-strike that turns hop-forward beer skunky when it sits on a lit shelf for a week. Each door locks.

Compressor and electrical

A 1/3 HP system charged with 3.88 oz of R290 hydrocarbon refrigerant holds the cabinet from 33°F to 38°F. R290 has a small fraction of the global warming potential of the HFC refrigerants it replaced. The unit draws 2.76 amps at 115V through a 9-foot cord and NEMA 5-15P plug, so it reaches a standard bar outlet without an extension.

Specifications

Model DBB72-H3
Type Back bar cooler, three swinging glass doors, locking
Capacity 19.20 cu. ft.
Exterior dimensions (W x D x H) 70-3/8" x 24-3/4" x 38-3/4"
Crate dimensions (W x D x H) 75-3/8" x 26-3/8" x 43-1/4"
Net weight 264 lbs
Temperature range 33°F to 38°F
Compressor 1/3 HP
Electrical 115V / 60Hz / 2.76 amps / 292 watts, 9 ft cord, NEMA 5-15P
Refrigerant R290, 3.88 oz charge
Glass Double pane tempered, UV blocking
Shelves 6, adjustable and removable
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this back bar cooler with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
