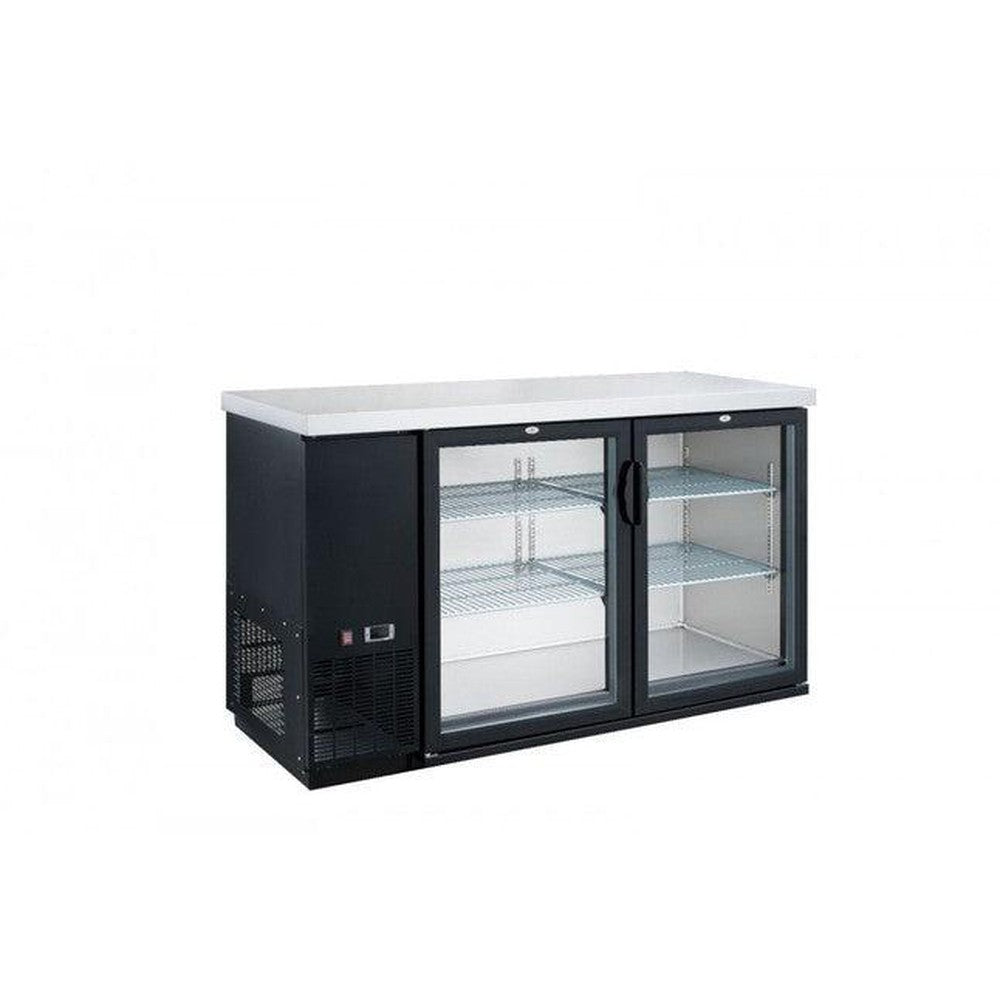

Dukers DBB60-H2 two swinging glass door back bar cooler, front view

Product Description

The Dukers DBB60-H2 is a 60-inch class back bar cooler holding 15.24 cu. ft. behind two swinging glass doors. At 56-7/8" wide and 38-3/4" tall it fills the middle of a back bar run in a bar or restaurant that turns over more bottled product than a 48-inch cabinet can carry through a Saturday night.

Six shelves instead of four

The extra cabinet width is set up with six adjustable wire shelves rather than the four in the 48-inch model, so you can separate product by brand or by well versus premium instead of stacking cases on top of each other. Every shelf lifts out, which is the only practical way to clean the syrup and beer residue that collects in the bottom of a bar cooler. Sorting by shelf also cuts the time a bartender stands with the door open hunting for a bottle, which is where most of a back bar's cooling load actually goes.

Swinging doors and full-width access

Both doors are hinged and lock. Swinging them open exposes the whole cabinet at once, so a case goes in as a case at restock rather than being split and shuffled through a half-width sliding opening. Plan on roughly two feet of clear floor in front of the unit for the swing — if the service aisle is tighter than that, the sliding-door DBB60-S2 is the same cabinet without the swing requirement.

R290 refrigeration

A 1/3 HP system charged with 3.53 oz of R290 hydrocarbon refrigerant holds the cabinet between 33°F and 38°F. R290 has a fraction of the global warming potential of the HFC blends it replaced and is what most new commercial bar refrigeration is being designed around. The unit draws 2.66 amps at 115V, so it runs on an ordinary bar circuit.

Specifications

Model DBB60-H2
Type Back bar cooler, two swinging glass doors, locking
Capacity 15.24 cu. ft.
Exterior dimensions (W x D x H) 56-7/8" x 24-3/4" x 38-3/4"
Crate dimensions (W x D x H) 63-1/2" x 26-3/8" x 43-1/4"
Net weight 220 lbs
Temperature range 33°F to 38°F
Compressor 1/3 HP
Electrical 115V / 60Hz / 2.66 amps / 284 watts, NEMA 5-15P
Refrigerant R290, 3.53 oz charge
Shelves 6, adjustable and removable
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 2-year parts and labor, 5-year compressor

Warranty

Dukers covers this back bar cooler with a 2-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
