Product Description

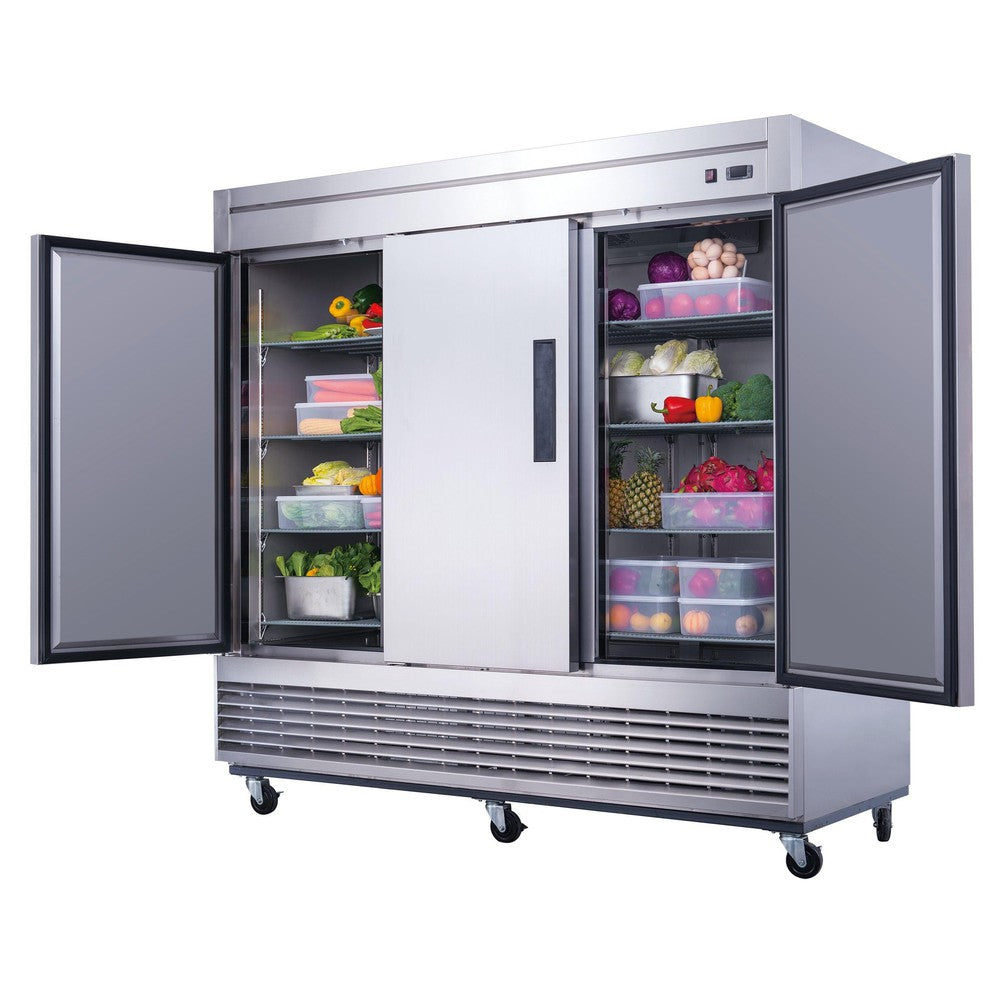

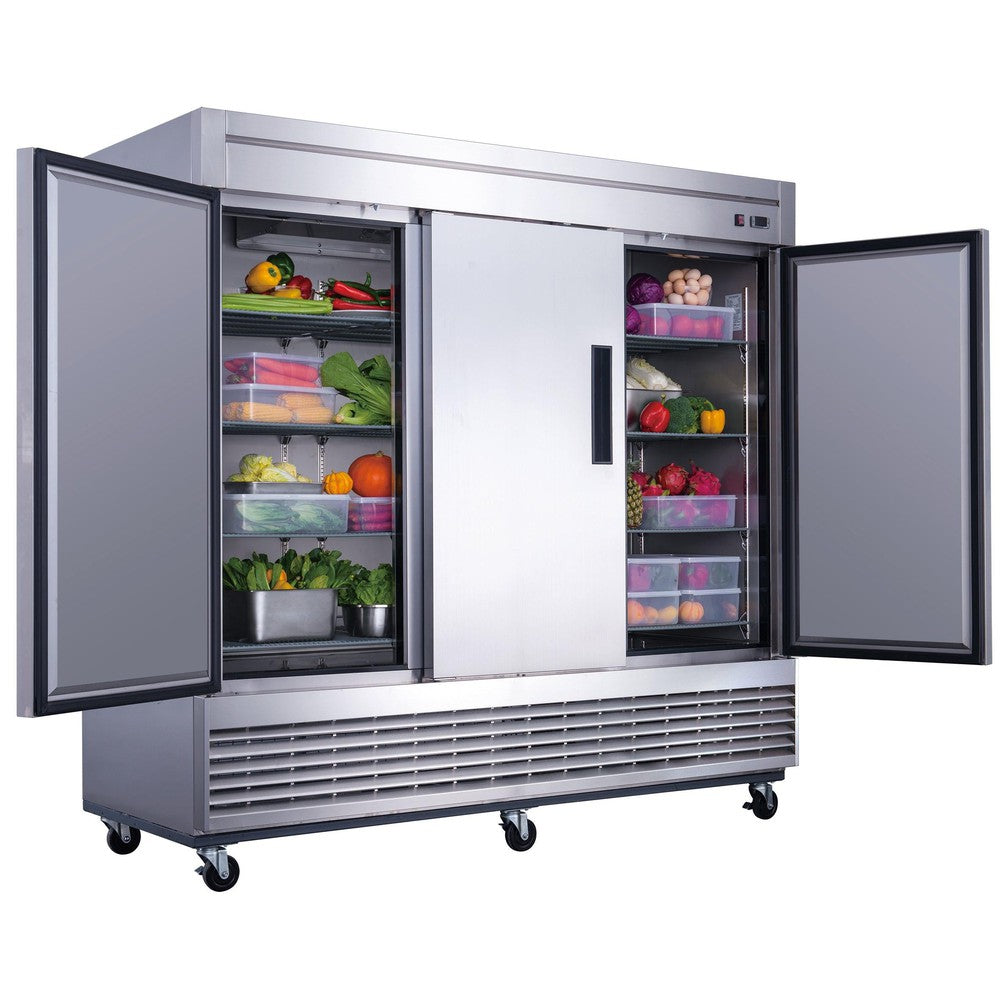

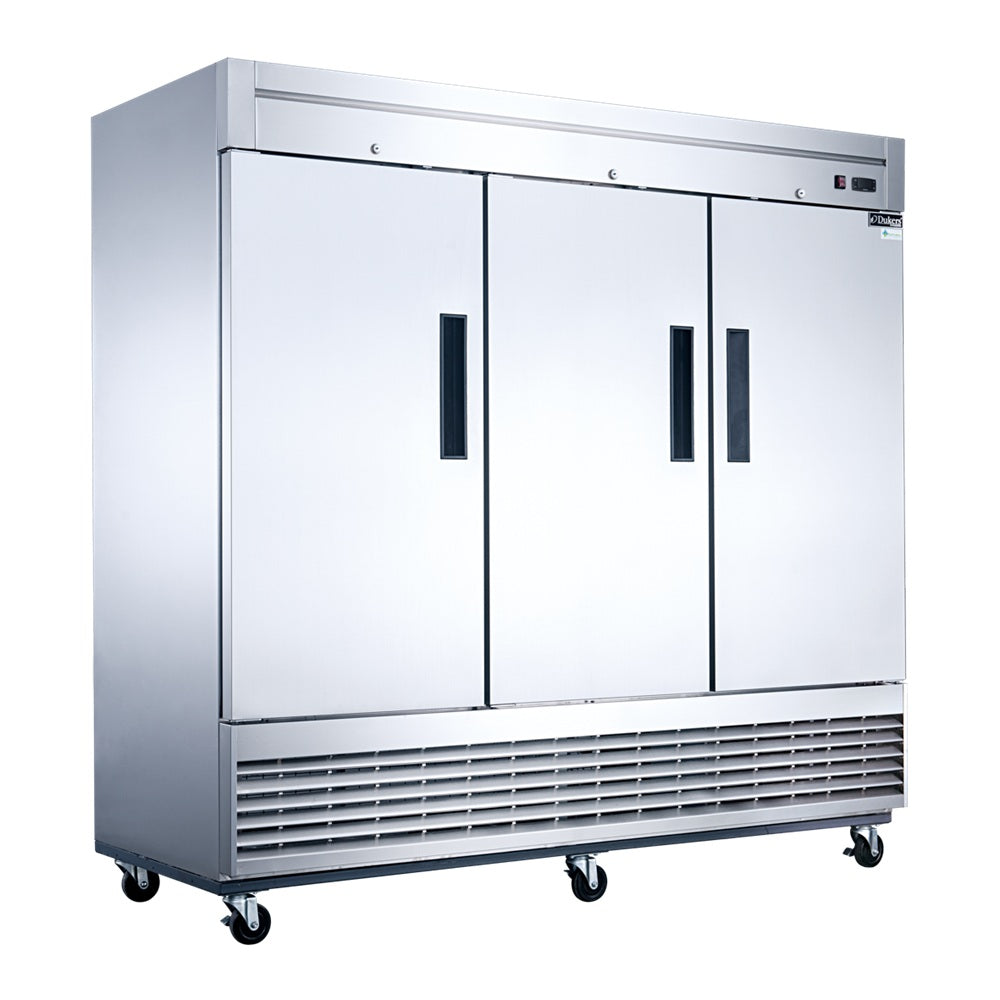

The Dukers D83R is a three-door reach-in refrigerator with 65.16 cu. ft. of storage in an 82-5/8" wide cabinet and bottom-mounted refrigeration. It is the largest bottom-mount cooler in this line, sized to carry a full service day for a high-volume restaurant, banquet kitchen, commissary or institutional foodservice operation.

Bottom mounted 1/2 HP system

The refrigeration deck sits under the cabinet, which leaves nearly seven feet of flat, usable top surface and keeps the overall height at 80-3/8" — worth checking against ductwork before you commit to a top-mount alternative. Every service point is at the front, and that matters on a 595 lb cabinet: nobody is walking this unit away from a wall for a routine condenser clean.

Three sections and twelve shelves

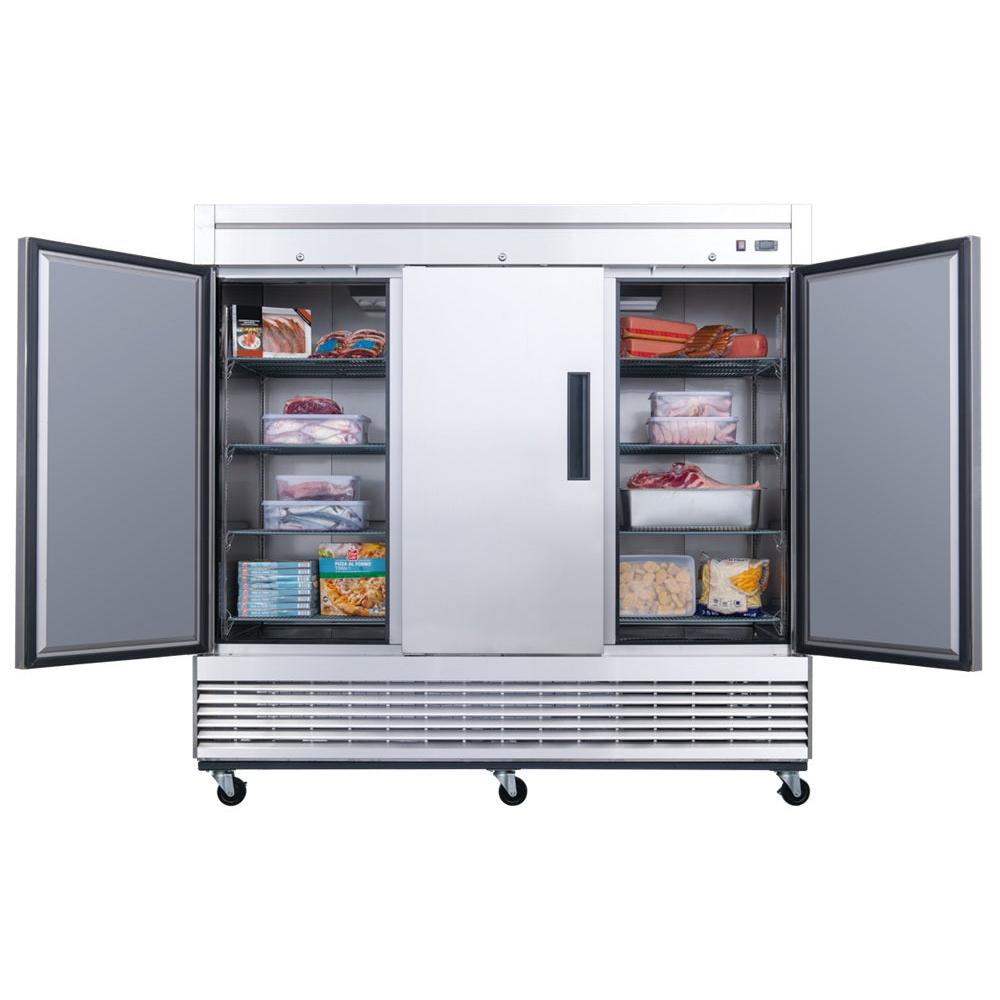

Three doors mean each opening exposes about a third of the cabinet, so cold air loss during a busy prep block is much lower than on a two-door box of similar volume. Twelve adjustable wire shelves — four per section — let a kitchen assign each section to a category and set heights around the hotel pans and cambros actually in use. All shelves lift out for cleaning.

R290 refrigerant and construction

The sealed system carries 5.22 oz of R290 natural hydrocarbon refrigerant, a low-GWP natural refrigerant, and holds 33°F to 41°F with automatic defrost. Brushed stainless steel inside and out with recessed handles, and all three doors lock.

Specifications

Model D83R
Type Reach-in refrigerator, three section, solid doors, bottom mount
Capacity 65.16 cu. ft.
Exterior dimensions (W x D x H) 82-5/8" x 32-5/8" x 80-3/8"
Crate dimensions (W x D x H) 84-5/8" x 34-5/8" x 82-3/8"
Net weight 595 lbs
Temperature range 33°F to 41°F
Compressor 1/2 HP, bottom mounted
Electrical 115V / 60Hz / 8.6 amps / 760 watts
Refrigerant R290, 5.22 oz charge
Defrost Automatic
Shelves 12, adjustable and removable
Doors 3 solid, locking
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
