Product Description

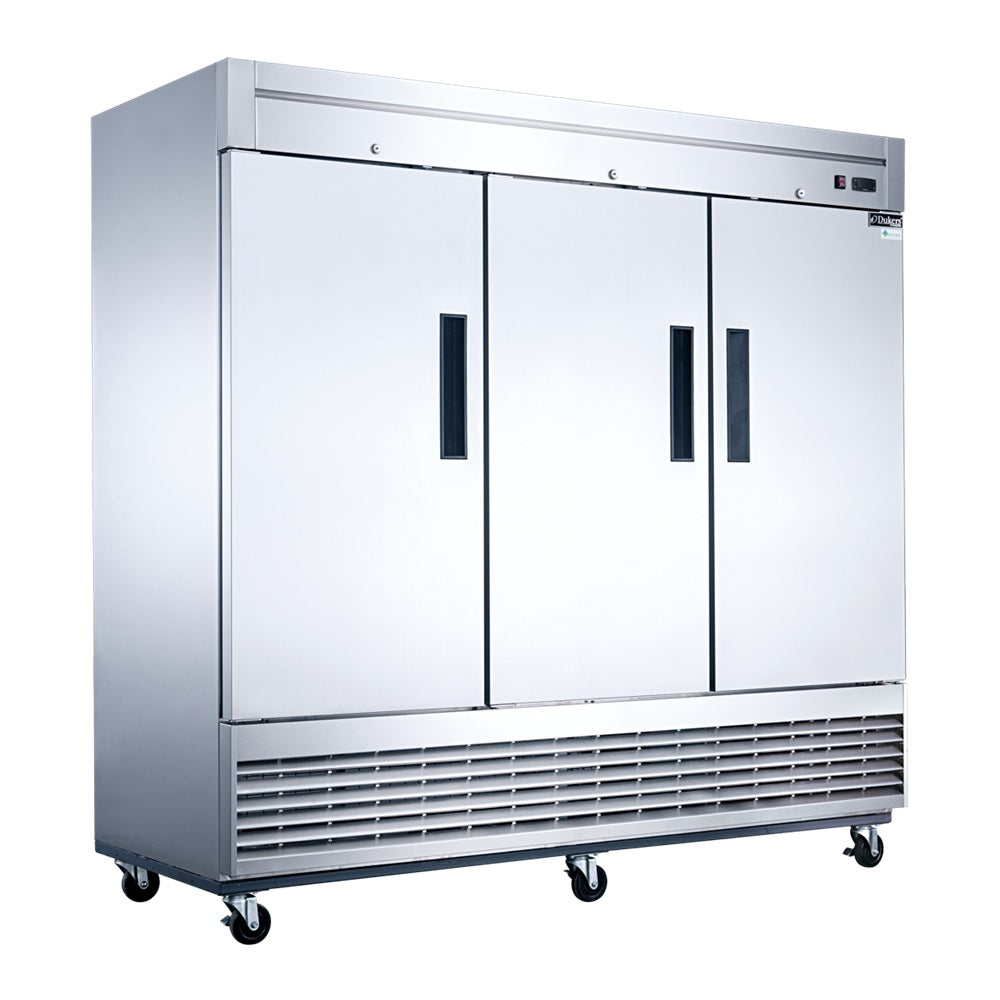

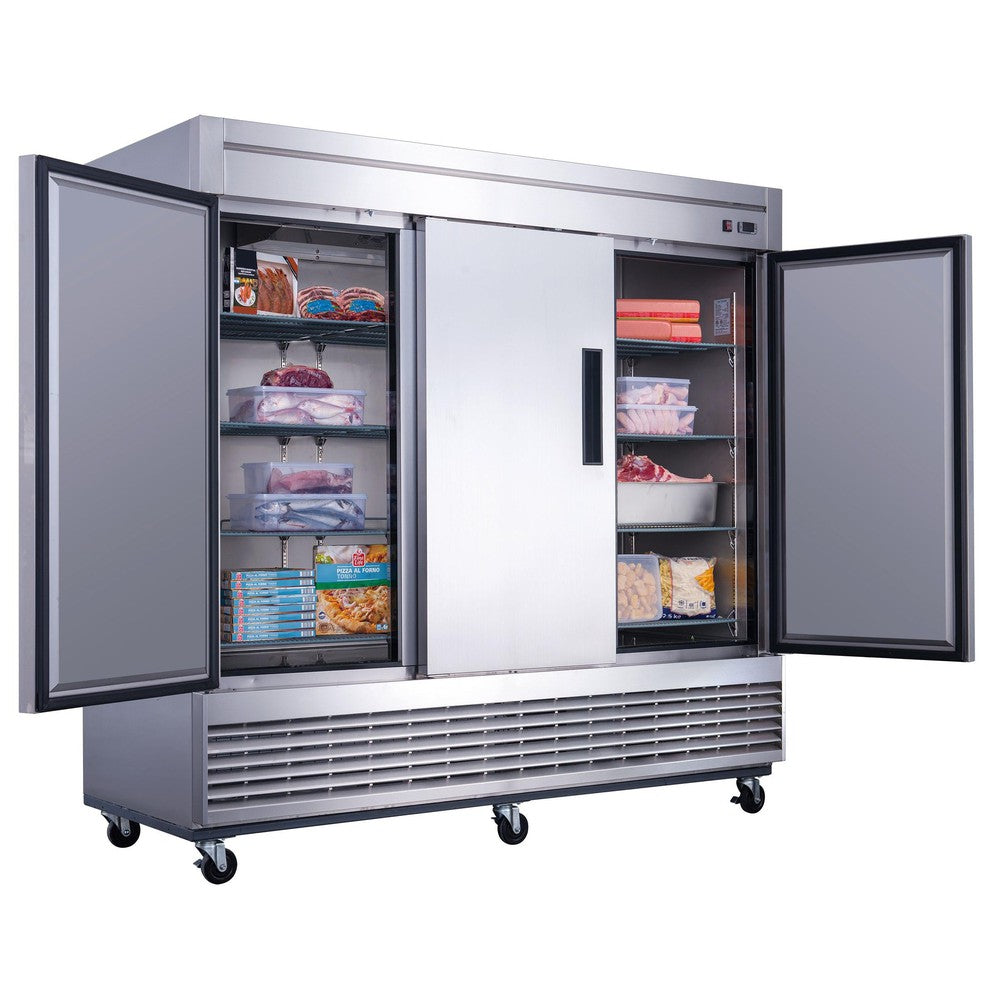

The Dukers D83F is a three-door reach-in freezer holding 65.16 cu. ft. in an 82-5/8" wide cabinet with the refrigeration decks mounted underneath. It is the largest bottom-mount freezer in this range and functions as a walk-in substitute for high-volume restaurants, banquet kitchens, bakeries and institutional foodservice.

Two compressors, one cabinet

Rather than one large system, this freezer runs two 3/4 HP compressors with independent refrigerant circuits carrying 4.2 oz of R290 each. The practical value shows up on a bad day: if one system goes down the cabinet degrades rather than failing outright, which buys time to move product instead of losing it. Independent cycling also holds temperature more evenly along a cabinet nearly seven feet wide than a single oversized compressor would.

Bottom mount on a wide cabinet

Placing the decks at the base leaves the whole cabinet top flat — on a unit this wide that is a substantial run of usable surface — and keeps overall height at 80-3/8" for kitchens with ductwork or low ceilings. All service is from the front, which matters more here than on a small unit: an 82-inch, 595 lb freezer is not something anyone wants to pull off a wall for a routine coil clean.

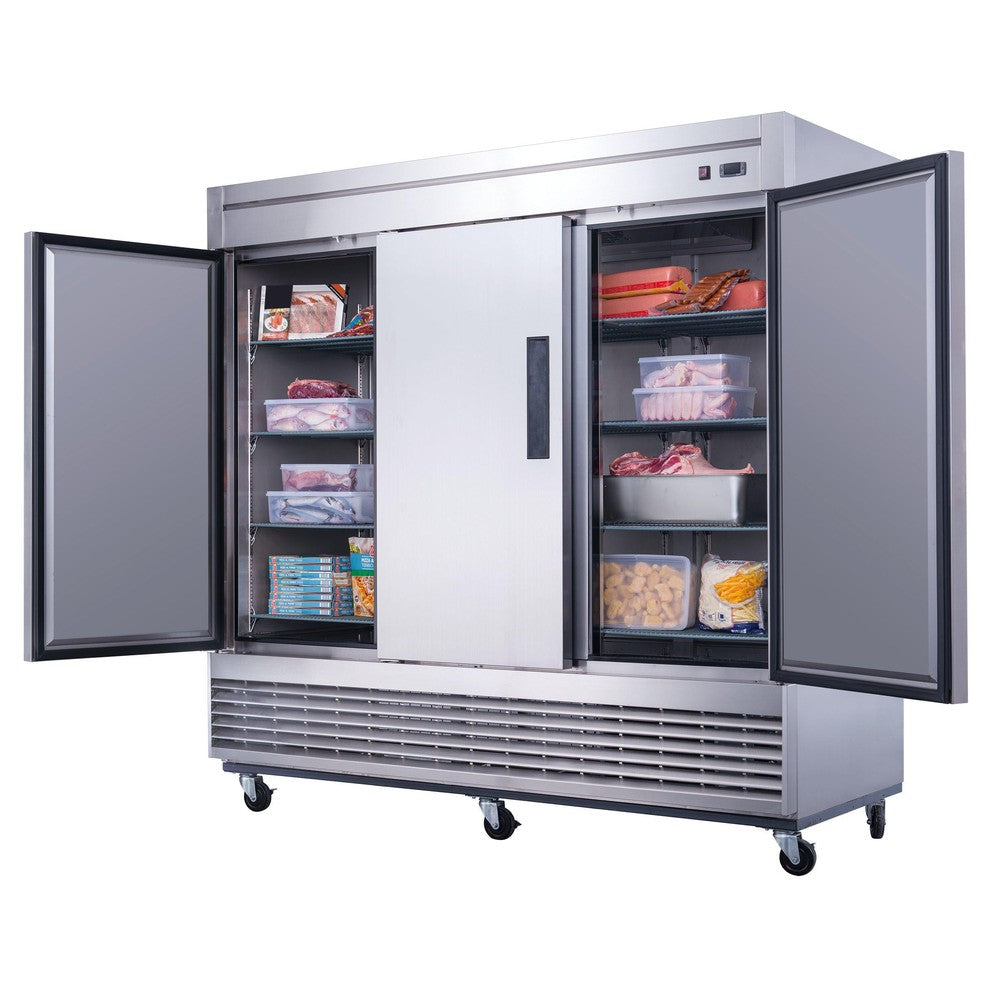

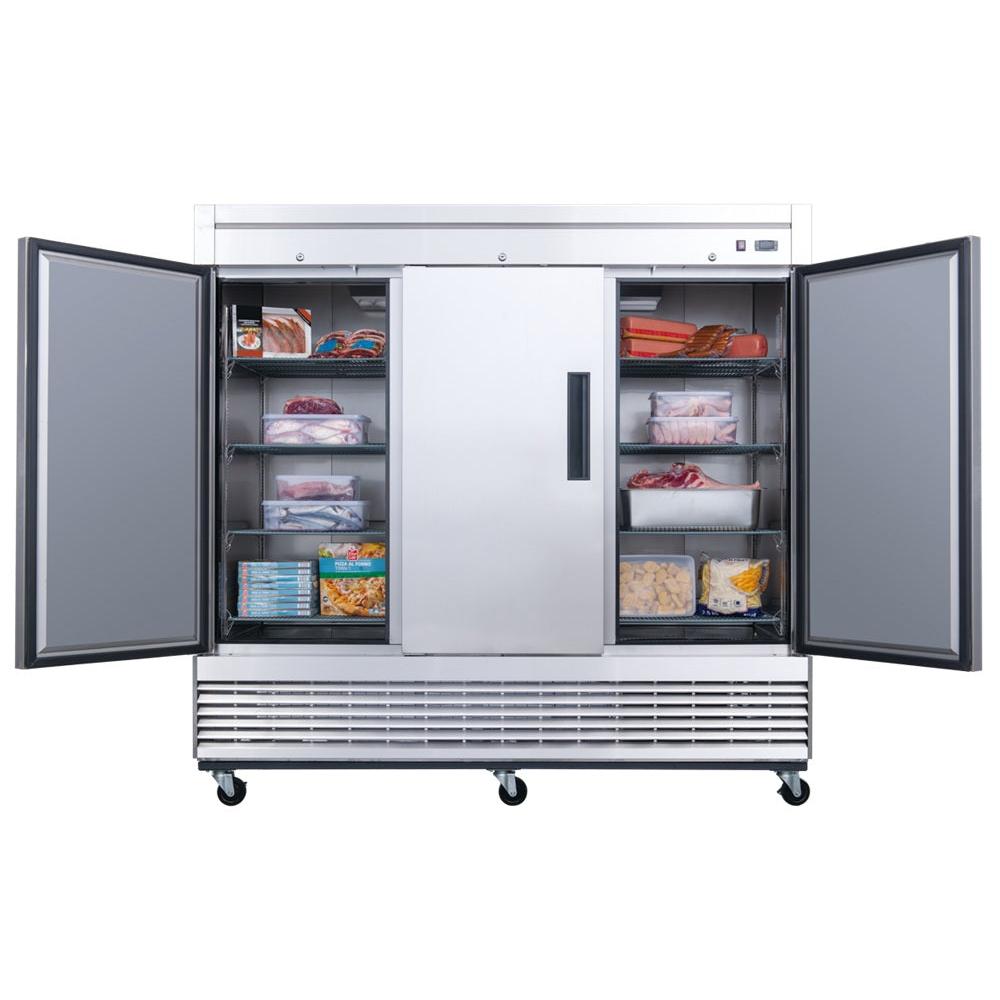

Three sections and twelve shelves

Twelve adjustable wire shelves, four per section, divide the volume into a layout a team can work by category. Opening one of three doors exposes only a third of the cabinet, which on a freezer directly limits how much humid room air reaches the evaporators and becomes frost. All doors lock and all shelves lift out for cleaning.

Specifications

Model D83F
Type Reach-in freezer, three section, solid doors, bottom mount
Capacity 65.16 cu. ft.
Exterior dimensions (W x D x H) 82-5/8" x 32-5/8" x 80-3/8"
Crate dimensions (W x D x H) 84-5/8" x 34-5/8" x 82-3/8"
Net weight 595 lbs
Temperature range 0°F to -8°F
Compressor 3/4 HP + 3/4 HP, bottom mounted
Electrical 115V / 60Hz / 16 amps / 1300 watts, NEMA 5-20P
Refrigerant R290, 4.2 oz + 4.2 oz charge
Defrost Automatic
Shelves 12, adjustable and removable
Doors 3 solid, locking
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
