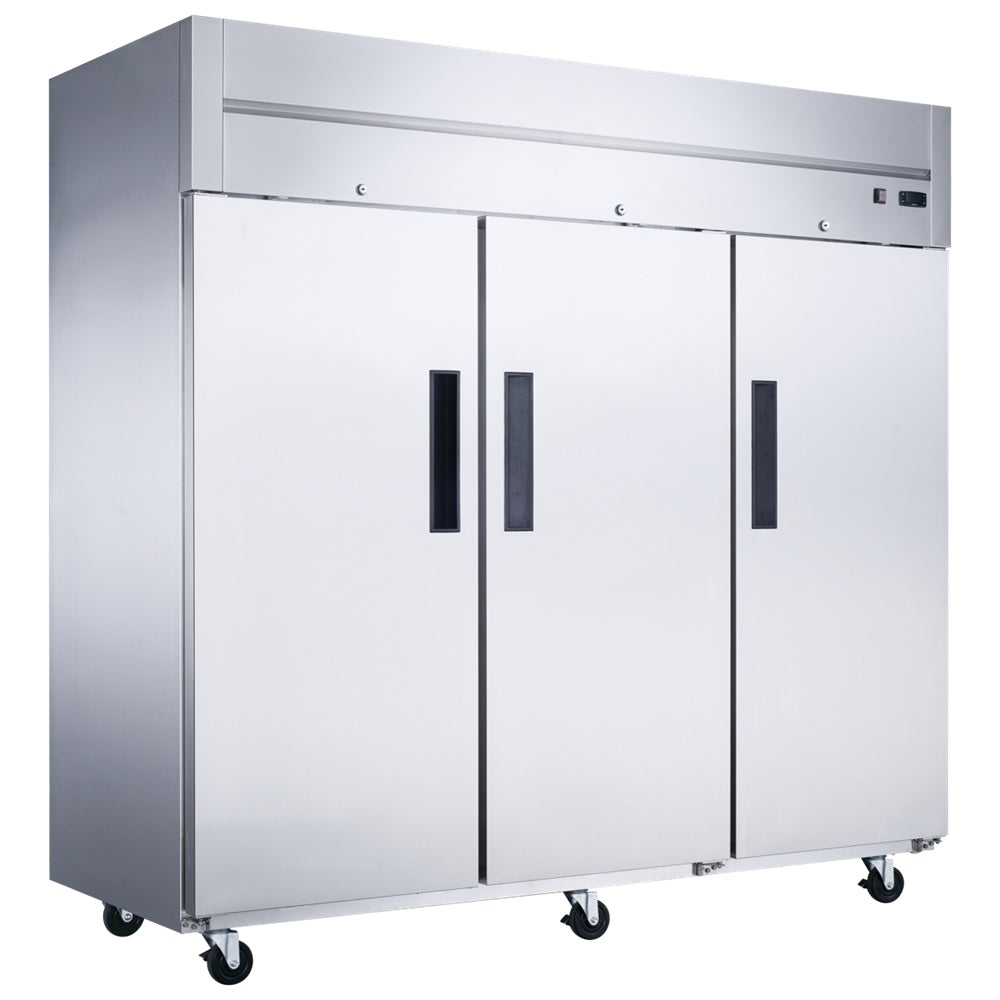

Dukers D83AR three solid door top mount reach-in refrigerator, stainless steel

Product Description

The Dukers D83AR is a three-door reach-in refrigerator with 66.21 cu. ft. of cold storage in an 82-5/8" wide cabinet and a top-mounted compressor. It is the largest single reach-in in this line — enough capacity to hold a full day's mise en place for a high-volume kitchen, banquet operation or institutional foodservice line without a walk-in.

Top mounted 1/2 HP compressor

The refrigeration deck sits on the cabinet roof, out of the grease and flour haze that settles at floor level and clogs condenser coils. On a cabinet nearly seven feet wide that placement also frees the entire base for storage rather than surrendering the bottom of one section to a machine compartment. The system draws 8.6 amps at 730 watts on a standard 115V supply with a NEMA 5-15P plug.

Three sections, twelve shelves

Splitting 66 cu. ft. behind three doors means one opening exposes about a third of the cabinet, so cold air loss during service is far lower than on a two-door box of comparable volume. Four adjustable wire shelves per section — twelve in all — let a kitchen dedicate each section to a category and set shelf heights to the containers actually in use. Every shelf lifts out for cleaning.

R290 refrigerant and door hardware

The sealed system carries 5.22 oz of R290 natural hydrocarbon refrigerant and holds 33°F to 41°F with automatic defrost. All three doors are self-closing and lock, with recessed handles that will not catch a passing sheet-pan rack in a tight aisle.

Specifications

Model D83AR
Type Reach-in refrigerator, three section, solid doors, top mount
Capacity 66.21 cu. ft.
Exterior dimensions (W x D x H) 82-5/8" x 34-1/4" x 80-1/4"
Crate dimensions (W x D x H) 84-1/4" x 35-1/4" x 82-1/4"
Net weight 595 lbs
Temperature range 33°F to 41°F
Compressor 1/2 HP, top mounted
Electrical 115V / 60Hz / 8.6 amps / 730 watts, NEMA 5-15P
Refrigerant R290, 5.22 oz charge
Defrost Automatic
Shelves 12, adjustable and removable
Doors 3 solid, self-closing, locking
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
