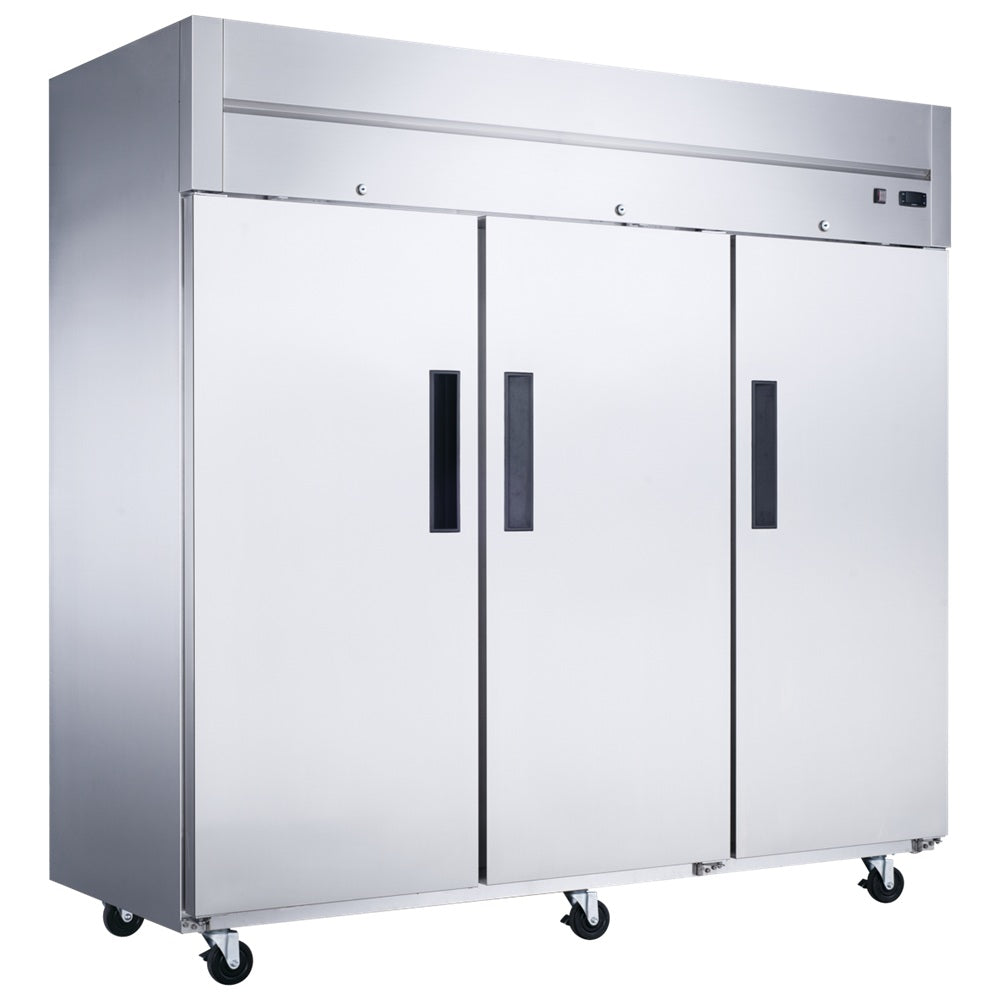

Dukers D83AF three solid door top mount reach-in freezer, stainless steel

Product Description

The Dukers D83AF is a three-door reach-in freezer with 66.21 cu. ft. of storage in an 82-5/8" wide cabinet and top-mounted refrigeration. At this size it is a genuine walk-in alternative for a high-volume restaurant, banquet kitchen, school or hospital foodservice operation that has the wall length but not the room for a freezer box.

Dual compressor system

This cabinet runs two 3/4 HP compressors rather than one large one. That is the important difference at 66 cu. ft.: the load is split across two sealed systems, so a single compressor failure degrades performance instead of losing the entire freezer and everything in it. Two smaller systems also cycle independently, which holds temperature more steadily across a wide cabinet than one oversized compressor short-cycling would.

Three doors on an 82 inch cabinet

Three sections mean that opening one door exposes roughly a third of the box rather than half or all of it — a real difference in a freezer during a busy put-away, because every opening pulls humid room air onto the evaporators. Twelve adjustable wire shelves, four per section, split the volume into a layout a team can organise by category rather than by whatever fits. All shelves lift out for cleaning.

Top mount and electrical

The refrigeration decks sit on the cabinet roof, away from the floor-level dust and grease that clogs condensers first. The unit draws 16 amps at 1300 watts through a NEMA 5-20P plug, so it needs a dedicated 20-amp circuit — worth confirming with an electrician before delivery rather than after.

Specifications

Model D83AF
Type Reach-in freezer, three section, solid doors, top mount
Capacity 66.21 cu. ft.
Exterior dimensions (W x D x H) 82-5/8" x 34-1/4" x 80-1/4"
Crate dimensions (W x D x H) 84-5/8" x 35-1/4" x 82-1/4"
Net weight 595 lbs
Temperature range 0°F to -8°F
Compressor 3/4 HP + 3/4 HP, top mounted
Electrical 115V / 60Hz / 16 amps / 1300 watts, NEMA 5-20P
Refrigerant R290, 4.2 oz + 4.2 oz charge
Defrost Automatic
Shelves 12, adjustable and removable
Doors 3 solid, locking
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
