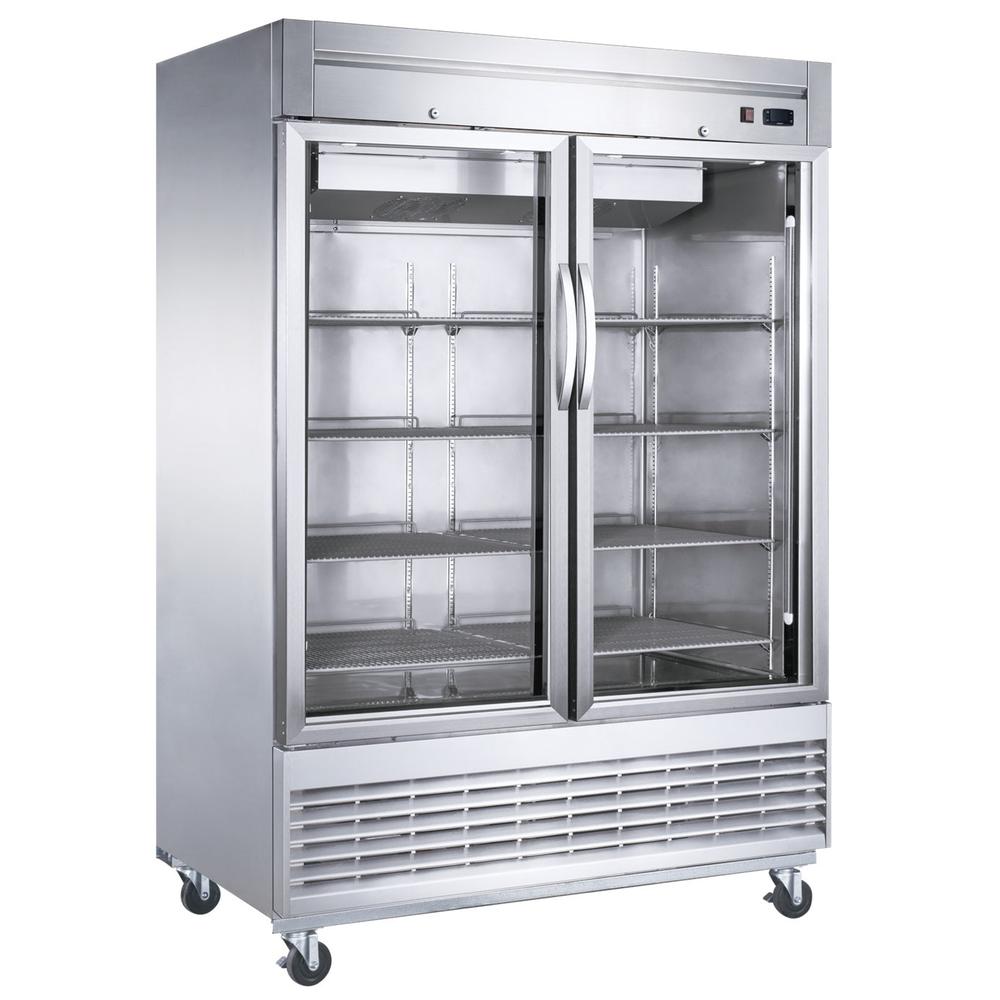

Dukers D55F-GS2 two glass door bottom mount reach-in freezer, stainless steel

Product Description

The Dukers D55F-GS2 is a two glass-door reach-in freezer with 40.74 cu. ft. of storage in a 55-1/8" wide cabinet and bottom-mounted refrigeration. It is aimed at operations that merchandise frozen product rather than simply warehouse it — convenience retail, ice cream and dessert counters, frozen grab-and-go and bar service.

Glass doors on a freezer

Both doors are hinged tempered glass. On a freezer, visibility does more work than it does on a cooler: every second a freezer door stands open pulls humid room air onto the evaporator, so a customer who can see the product and decide before opening directly reduces the frost load the defrost cycle has to clear. Both doors lock for overnight security in an unattended retail space.

Larger refrigerant charge for freezer duty

The sealed system carries 8.82 oz of R290 natural hydrocarbon refrigerant — noticeably more than the refrigerator versions of this cabinet — because holding 0°F to -8°F behind two glass doors is a harder thermal job than holding 38°F behind steel. Defrost is automatic. The 1 HP compressor draws 5.3 amps at 1065 watts from a standard 115V supply.

Bottom mount and interior

Placing the refrigeration deck at the base leaves the glass running the full merchandising height with nothing overhead to interrupt the sight line, and puts every service point at the front. Eight epoxy-coated wire shelves, four per section, adjust in height and lift out for cleaning.

Specifications

Model D55F-GS2
Type Reach-in freezer, two section, glass doors, bottom mount
Capacity 40.74 cu. ft.
Exterior dimensions (W x D x H) 55-1/8" x 34" x 80-3/8"
Crate dimensions (W x D x H) 57-1/8" x 36" x 82-3/8"
Net weight 506 lbs
Temperature range 0°F to -8°F
Compressor 1 HP, bottom mounted
Electrical 115V / 60Hz / 5.3 amps / 1065 watts
Refrigerant R290, 8.82 oz charge
Defrost Automatic
Shelves 8 epoxy-coated wire, adjustable and removable
Doors 2 hinged tempered glass, locking
Certifications NSF; cETLus / ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
