Product Description

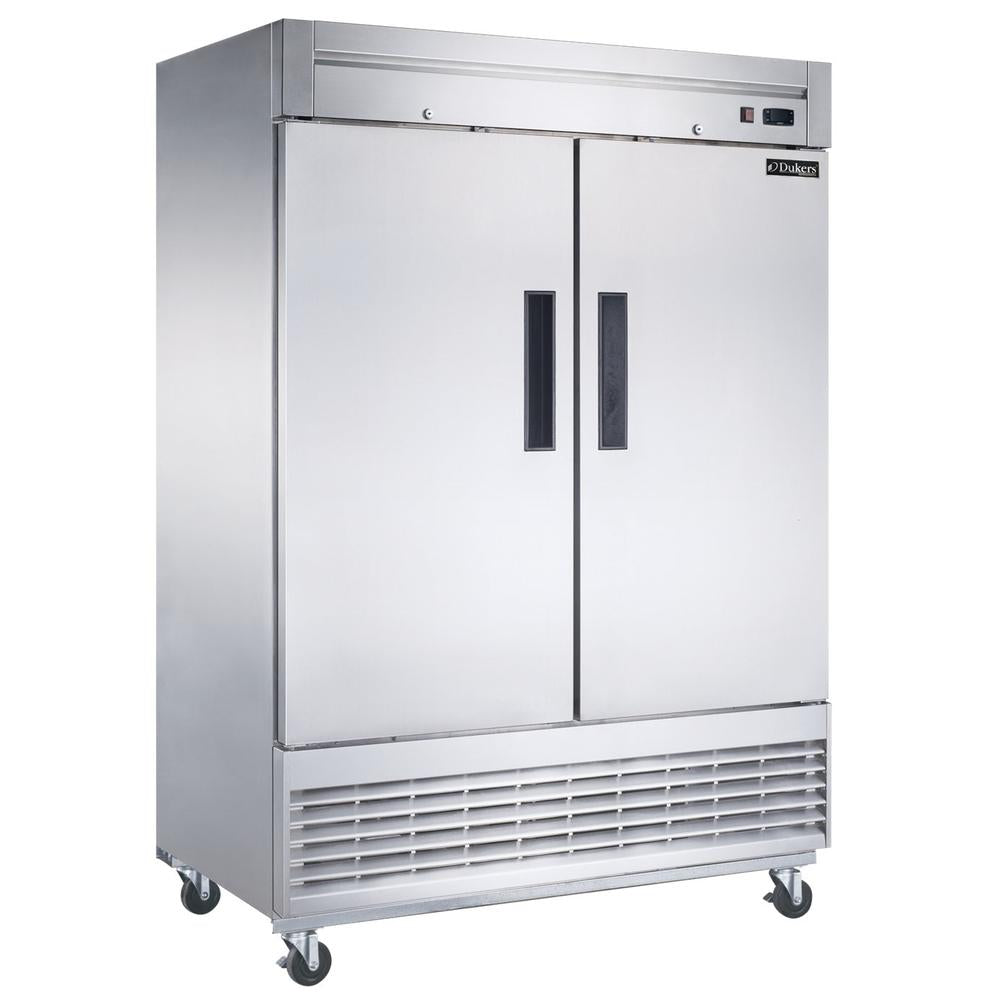

The Dukers D55F is a two-door reach-in freezer with 41.62 cu. ft. of storage in a 55-1/8" wide cabinet and the refrigeration deck mounted underneath. It suits a restaurant, bakery, bar or institutional kitchen that needs substantial frozen inventory in a single footprint and wants the top of the unit left flat and usable.

Bottom mounted 1 HP system

With the compressor at the base, the top of the cabinet stays clear — no housing to work around and nothing to lose ceiling clearance to. Every service point is reachable from the front, so the unit can be installed shoulder to shoulder with other equipment and still be maintained without being dragged out. The condenser sits at floor level where it is visible enough that someone will actually clean it, which is what keeps a 1 HP freezer system alive.

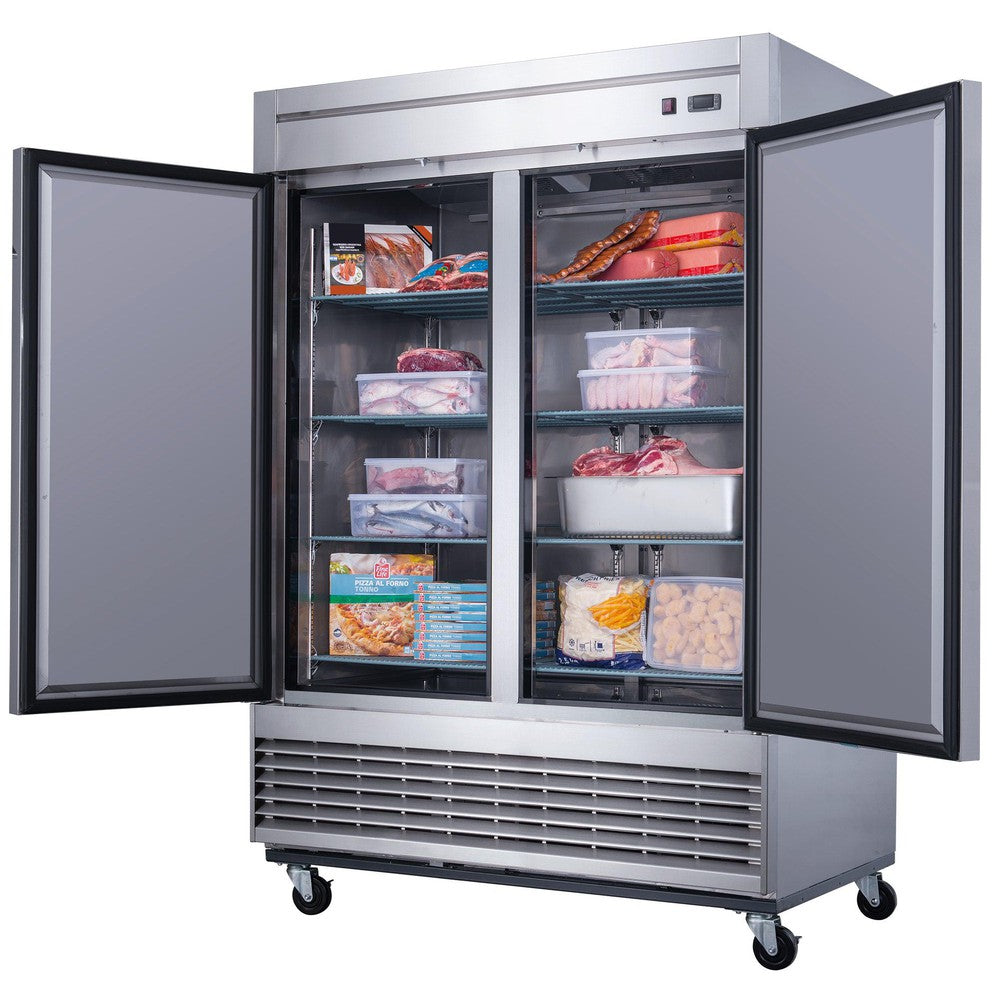

Self-closing doors with stay-open detent

Both doors close themselves but will hold open when pushed past a detent, which matters during a delivery put-away when someone is loading with both hands full. On a freezer this combination is more than convenience: an unclosed door draws humid room air across the evaporator, which becomes frost, which becomes a defrost cycle that never quite catches up. Both doors lock.

R290 refrigerant and eight shelves

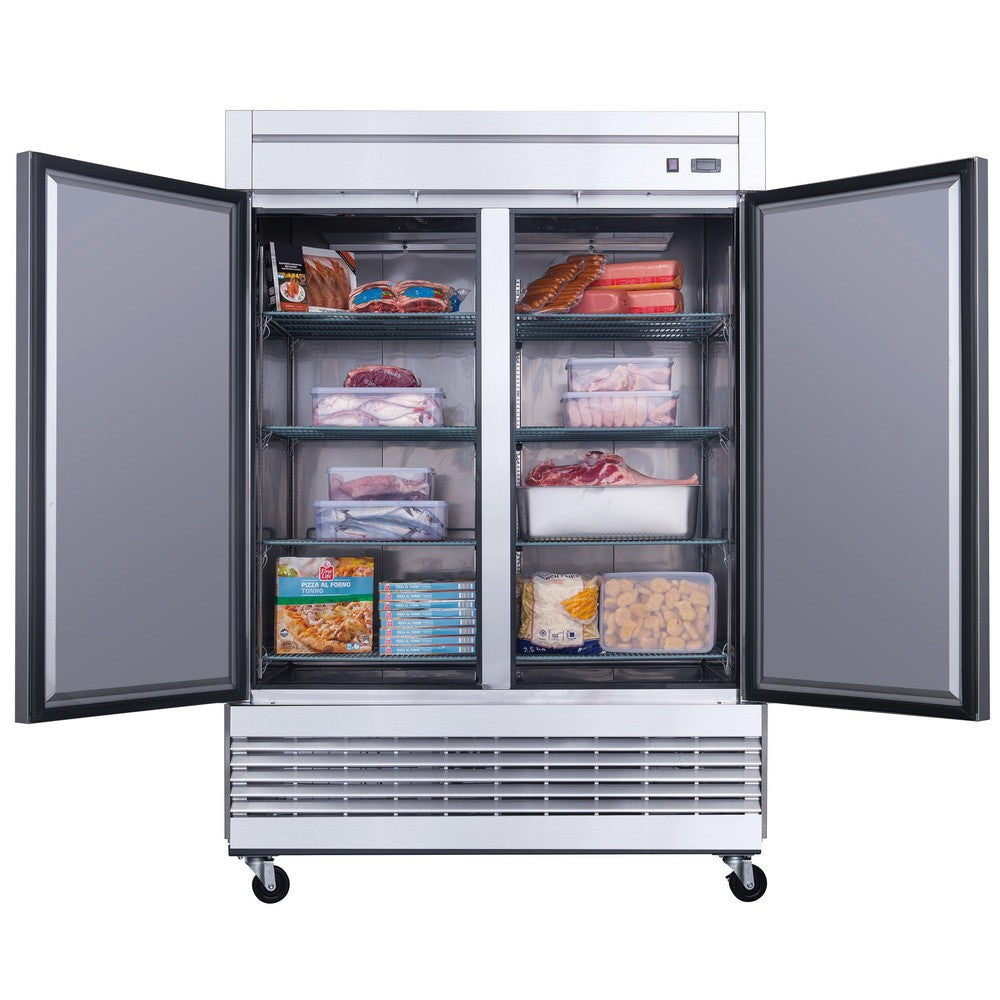

The sealed system carries 5.11 oz of R290 natural hydrocarbon refrigerant and holds 0°F to -8°F with automatic defrost. Eight adjustable wire shelves, four per section, divide 41.62 cu. ft. into a workable set of levels and all lift out for cleaning.

Specifications

Model D55F
Type Reach-in freezer, two section, solid doors, bottom mount
Capacity 41.62 cu. ft.
Exterior dimensions (W x D x H) 55-1/8" x 32-5/8" x 80-3/8"
Crate dimensions (W x D x H) 57-1/8" x 34-5/8" x 82-3/8"
Net weight 463 lbs
Temperature range 0°F to -8°F
Compressor 1 HP, bottom mounted
Electrical 115V / 60Hz / 11.8 amps / 1250 watts, NEMA 5-15P
Refrigerant R290, 5.11 oz charge
Defrost Automatic
Shelves 8, adjustable and removable
Doors 2 solid, self-closing with stay-open feature, locking
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
