Product Description

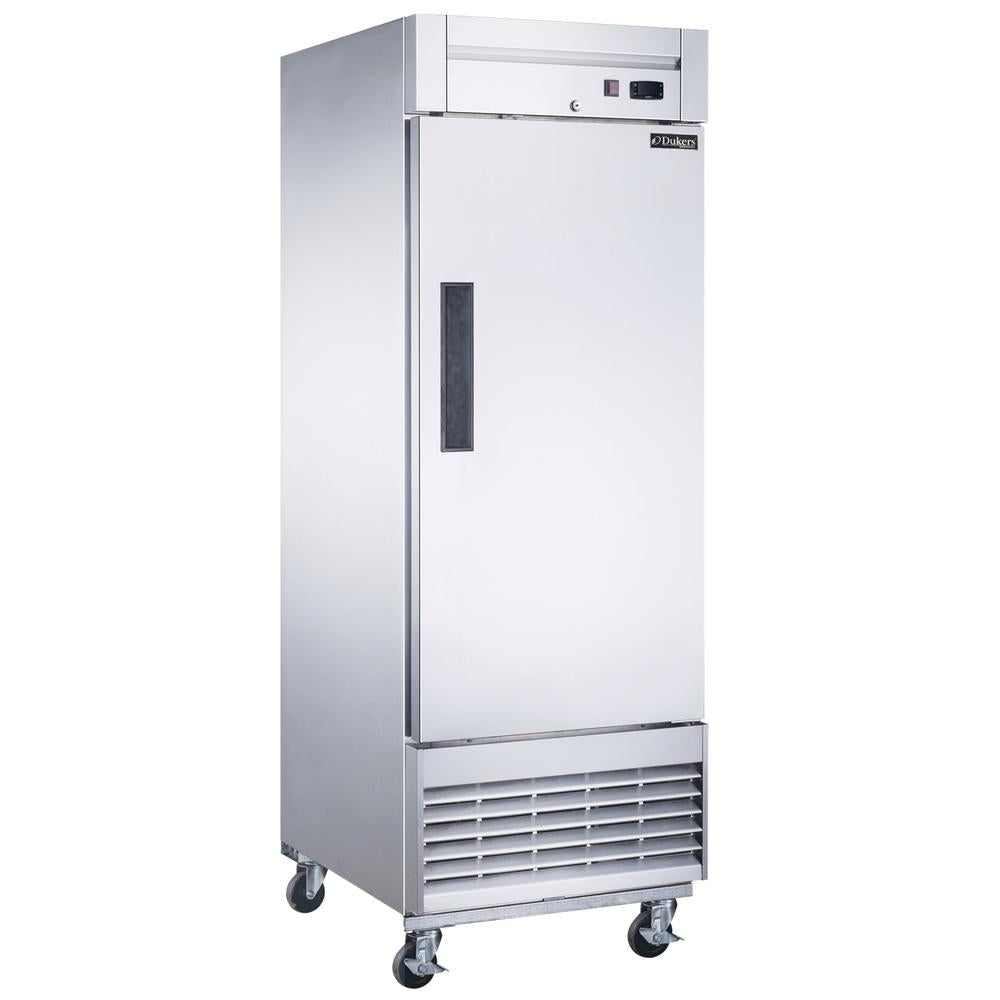

The Dukers D28F is a single solid-door reach-in freezer holding 18.75 cu. ft. in a 27-1/2" wide cabinet with the compressor mounted underneath. It is the standard back-of-house freezer for a restaurant, bakery or bar that needs one full-height section of frozen storage against a wall, not a walk-in.

Bottom mounted 3/4 HP system

Putting the refrigeration deck at the base of the cabinet keeps the heaviest component near the floor and gives the technician front access, so the unit never has to be pulled away from the wall for a condenser clean or a service call. It also keeps the top of the cabinet flat and usable rather than surrendering it to a compressor housing. The 3/4 HP system has the reserve to recover freezer temperature quickly after repeated door openings during a rush.

Reversible self-closing door

The door hinges are field-reversible, which decides nothing at purchase and everything at installation — you can set the swing after you see how the unit lands in the line, rather than designing the line around the door. It closes itself and has a stay-open detent for loading, and it locks. In a freezer, a door left ajar is not just an energy cost but a defrost problem, so self-closing is doing real work here.

R290 refrigerant and automatic defrost

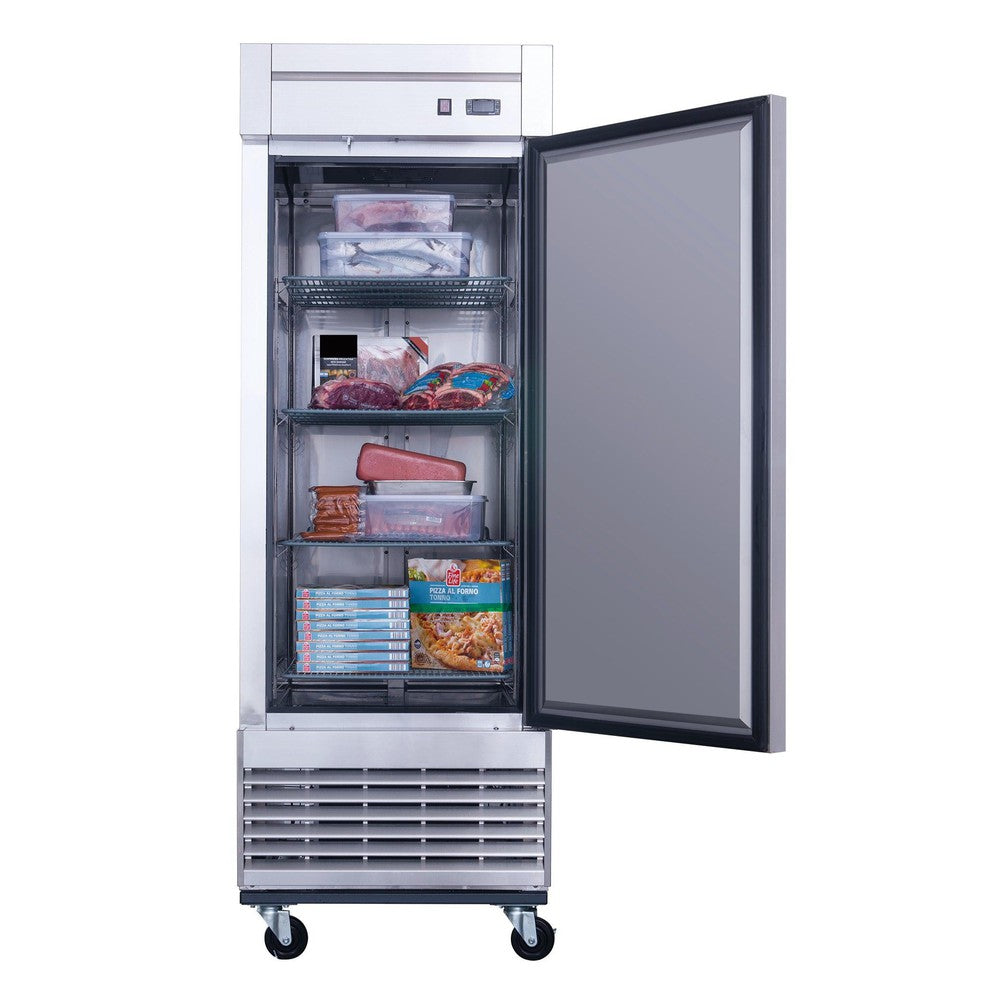

The sealed system carries 4.41 oz of R290 natural hydrocarbon refrigerant and holds 0°F to -8°F. Defrost is automatic, so there is no manual cycle for someone to forget. Four wire shelves adjust and lift out completely for cleaning.

Specifications

Model D28F
Type Reach-in freezer, one section, solid door, bottom mount
Capacity 18.75 cu. ft.
Exterior dimensions (W x D x H) 27-1/2" x 32-5/8" x 80-3/8"
Crate dimensions (W x D x H) 29-1/8" x 34-5/8" x 82-3/8"
Net weight 287 lbs
Temperature range 0°F to -8°F
Compressor 3/4 HP, bottom mounted
Electrical 115V / 60Hz / 9.5 amps / 750 watts
Refrigerant R290, 4.41 oz charge
Defrost Automatic
Shelves 4, adjustable and removable
Door 1 solid, reversible, self-closing with stay-open feature, locking
Certifications NSF/ANSI 7; ETL Listed; ETL Sanitation
Warranty 3-year parts and labor, 5-year compressor

Warranty

Dukers covers this stainless steel unit with a 3-year parts and labor warranty and a 5-year compressor warranty from the date of purchase.
