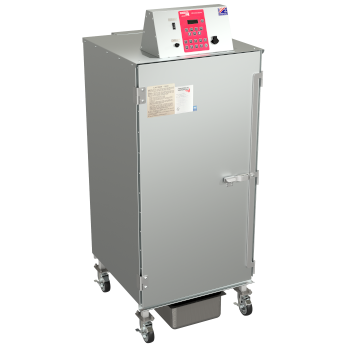

Cookshack SM260 electric commercial smoker oven with doors closed

Product Description

The Cookshack SM260 is a double walled stainless steel electric smoker oven that holds 240 pounds of pork butts across six 23 by 23 inch grills, heated by two 1,500 watt elements.

The Only Model with 23 Inch Grills

The SM260 is the odd one in the range. Where the SM160 and SM360 both use 18 by 18 inch grills, this model uses six larger 23 by 23 inch grills for 3,456 square inches of cooking area. Fewer, wider shelves suit whole briskets and large bone-in cuts that would need turning on a narrower grill, and the 5 inch shelf spacing is unchanged.

Twice the Capacity, Half the Amps of the SM360

Two 1,500 watt elements draw 20 amps at 220 volts single phase. That is a meaningful step down from the SM360, which needs 50 amps at the same voltage, and a step up from the SM160's ordinary 120 volt circuit. Rated loads are 240 pounds of pork butts, 200 pounds of brisket, 100 pounds of ribs or 40 whole chickens, with a published operating cost of $1.94 for twelve hours.

Wood Box Scaled to the Cabinet

The removable wood box takes up to 12 ounces of wood, double the SM160 limit and a quarter of the SM360 allowance. Cookshack rates roughly 2 ounces, about one chunk, per 60 pounds of product, so a full box covers a loaded cabinet with margin. The IQ6 controller carries the same eight programmable presets, alarm cycle, WiFi, Bluetooth and 512 hour USB cook log as the rest of the line.

Specifications

Model SM260
Series Series 200
Type Electric Smoker Oven
Capacity 240 lb pork butts, 200 lb brisket, 100 lb ribs, 40 whole chickens
Cooking Area 3,456 sq in (24 sq ft)
Grills (6) nickel plated, 23 Inch x 23 Inch, spaced 5 Inch apart
Exterior Dimensions 26.5 Inch W x 64.5 Inch H x 31 Inch D
Shipping Weight 356 lb
Electrical 220V, single phase
Wattage 3,000 W total (2 x 1,500 W elements)
Amperage 20 A
Temperature Range 130 F to 275 F
Controller IQ6 with WiFi and Bluetooth
Wood Box Capacity 12 oz maximum
Insulation 850 F Spin-Glas
Construction Double walled stainless steel
Power Cord Approx 52 Inch
Certifications NSF, USDA, UL 197 and UL 710B listed in the USA and Canada

Warranty

Cookshack Smoker Ovens carry a two year limited warranty against defects in material and workmanship under normal use and when installed in accordance with factory recommendations. The warranty includes 90 days of parts and labor; the remainder of the two year term is parts only. Cookshack approval is required before any service work is performed.
