Product Description

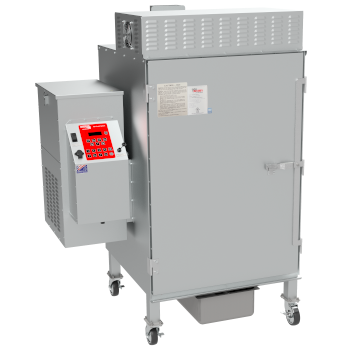

The Cookshack FEC120 is a stainless steel pellet fired smoker oven that holds 150 pounds of pork butts across five fixed shelves and runs on a standard 120 volt 20 amp circuit.

Wood Fired Output on an Ordinary Circuit

The FEC120 burns 100 percent food grade wood pellets for heat and smoke, but its electrical demand is modest: 120 volts, 60 hertz, single phase, 20 amp service. That matters because it puts genuine wood fired barbecue within reach of a kitchen that has no gas drop and no 220 volt capacity to spare. Pellet consumption runs about 1 pound per hour at 250 degrees, the lowest in the commercial FEC line.

Five Fixed Shelves at 4.75 Inch Spacing

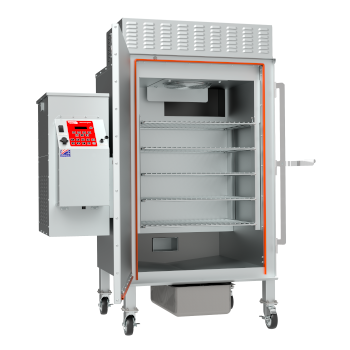

Cooking area is 1,955 square inches, or 13.5 square feet, across five nickel plated steel shelves measuring 23 by 17 inches. The 4.75 inch spacing is the tightest in the line, which favors ribs, chicken and smaller cuts over tall bone-in loads. Rated capacity is 150 pounds of pork butts, 120 pounds of brisket, 90 pounds of ribs or 30 whole chickens per load.

Where It Sits Against the FEC240

The FEC120 and FEC240 share the same shelf size, the same controller and the same 20 amp electrical requirement. The FEC240 adds three more shelves, wider 5 inch spacing and a 60 pound hopper against this model's 40 pounds. For an operator whose constraint is volume rather than power, the FEC240 is the upgrade; for one adding smoked product to an existing line, the FEC120 is the smaller commitment on the same circuit.

Specifications

Model FEC120
Series Fast Eddy's by Cookshack
Type Pellet Fired Smoker Oven
Capacity 150 lb pork butts, 120 lb brisket, 90 lb ribs, 30 whole chickens
Cooking Area 1,955 sq in (13.5 sq ft)
Shelves (5) nickel plated steel, 23 Inch x 17 Inch, spaced 4.75 Inch apart
Shipping Weight 555 lb
Electrical 120V, 60 Hz, single phase
Amperage 20 A service required
Temperature Range 160 F to 400 F
Controller IQ6 electronic time and temperature control, smoke cook and rest cycles
Hopper Capacity 40 lb
Pellet Consumption 1 lb per hour at 250 F
Fuel 100 percent food grade wood pellets
Insulation 850 F Spin-Glas
Construction Double walled stainless steel interior and exterior, steel perimeter frame
Certifications NSF and USDA approved, UL listed

Warranty

Cookshack equipment carries a two year limited warranty against defects in material and workmanship under normal use and when installed in accordance with factory recommendations. The warranty includes parts and labor for the first 90 days; the remainder of the two year term is parts only. Cookshack approval is required before any service work is performed.
