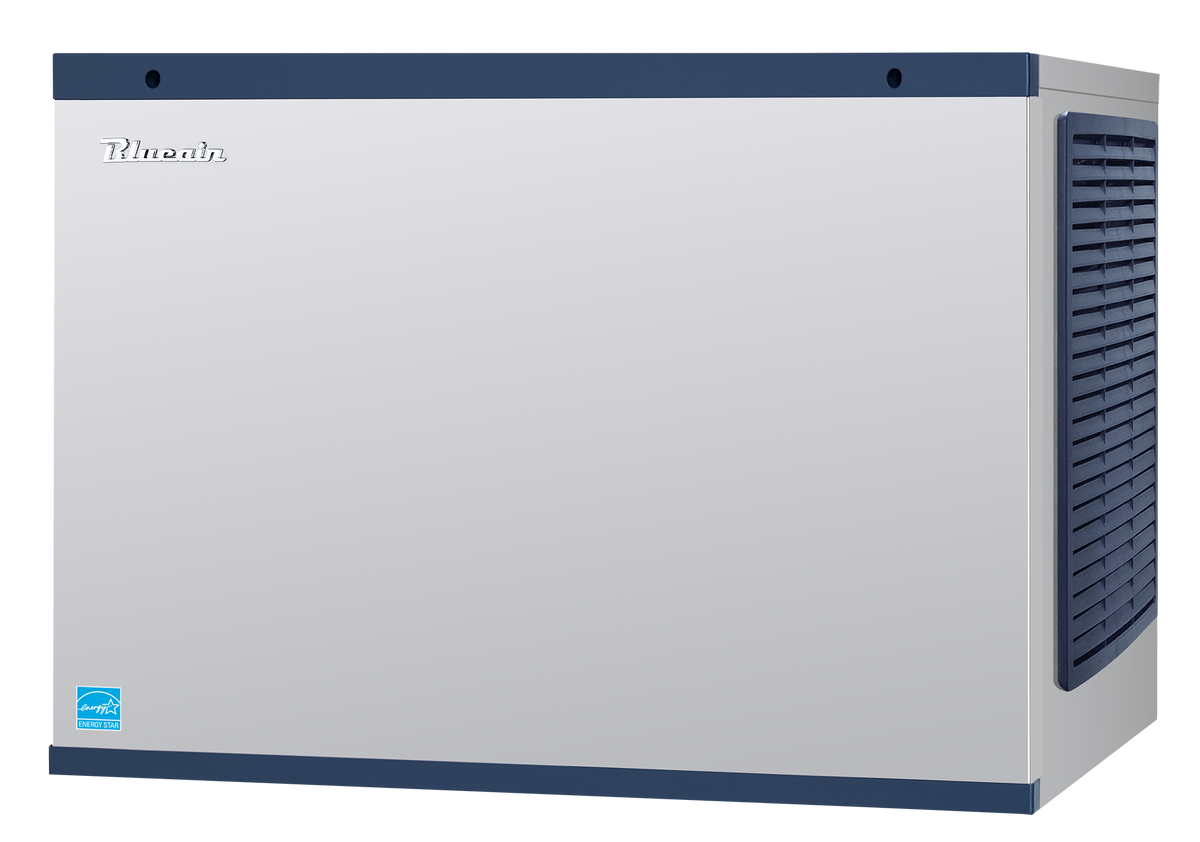

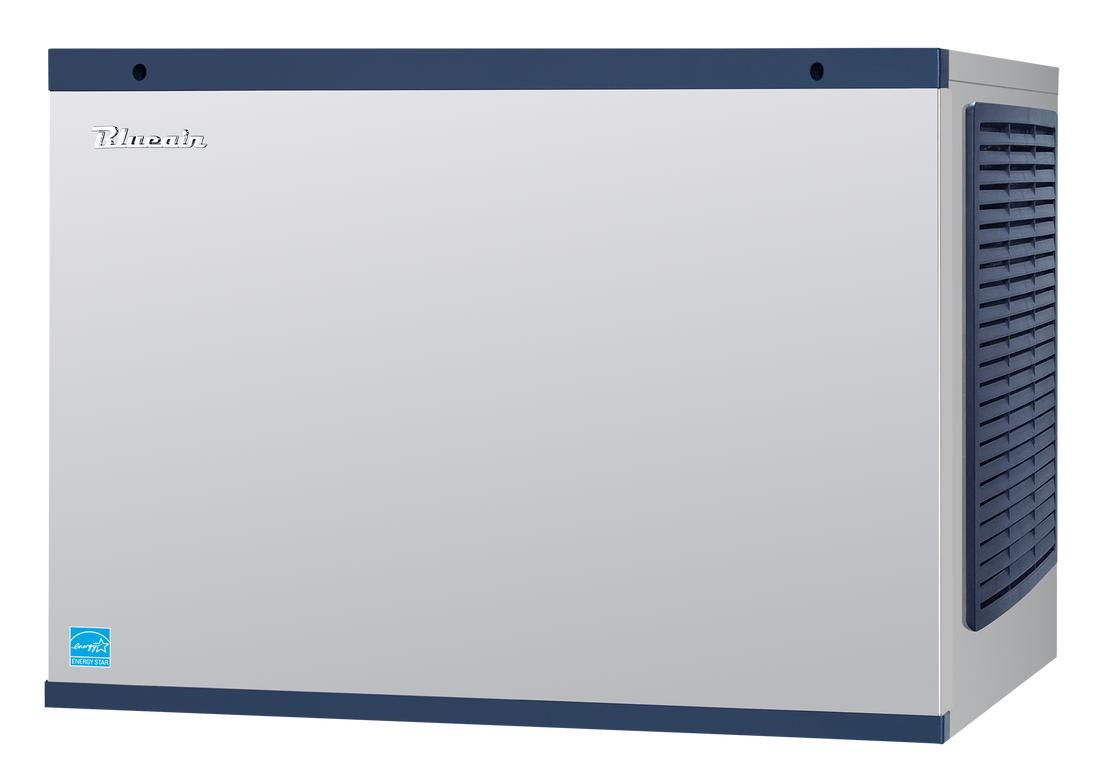

Blue Air BLMD-650AD ice machine

Product Description

The Blue Air BLMD-650AD is a 30-inch modular air-cooled ice machine head that produces up to 632 lbs of full dice ice per 24 hours at 70 F air and 50 F water. It requires a separate storage bin.

632 lbs per Day of Full Dice Ice

Blue Air rates the BLMD-650AD at 632 lbs (70F Air/50F Water) and 498 lbs (90F Air/70F Water). Full dice cubes (7/8 inch) melt slowly and suit beverage service. Each harvest cycle yields 4.7 lbs, 234 cubes (18 columns x 13 rows).

30-Inch AD Cabinet at 220V

The AD models share a 30-inch wide cabinet so they match 30-inch bins. This unit runs on 220V/60Hz/1ph and lists a 7.4 A minimum circuit ampacity with a 20 A maximum HACR breaker. It uses R-290 refrigerant.

Controls and Maintenance

An automatic freeze and harvest cycle, a bin-full sensor, a 7-segment diagnostic display and a built-in cleaning and sanitizing mode are standard. The air filter is removable for cleaning. Blue Air lists DH-series water filters as optional accessories.

Specifications

Model BLMD-650AD
Manufacturer Blue Air
Type Modular Ice Machine - Full Dice
Exterior Dimensions 30-1/4 in. W x 24-1/2 in. D x 21-1/8 in. H
Net Weight 141 lbs.
Shipping Weight 154 lbs.
Electrical 220V/60Hz/1ph
Amperage 6.4 A
Refrigerant R-290
Production (24 hr) 632 lbs (70F Air/50F Water), 498 lbs (90F Air/70F Water)
Ice Type Full Dice
Condenser Air-Cooled
Cube Dimensions Full Dice 7/8 in. x 7/8 in. x 7/8 in. (22 x 22 x 22 mm)
Min. Circuit Ampacity 7.4 A
Max HACR Breaker 20 A
Water consumption per 100 lbs 14.2 gal
Electric consumption per 100 lbs 4.7 kWh
Warranty 3 Year Parts and Labor Warranty; 5 Year Compressor Warranty; 5 Year Evaporator Parts and Labor Warranty

Warranty

The Blue Air spec sheet for the BLMD-650AD lists the following coverage: 3 Year Parts and Labor Warranty, 5 Year Compressor Warranty, 5 Year Evaporator Parts and Labor Warranty.
