Product Description

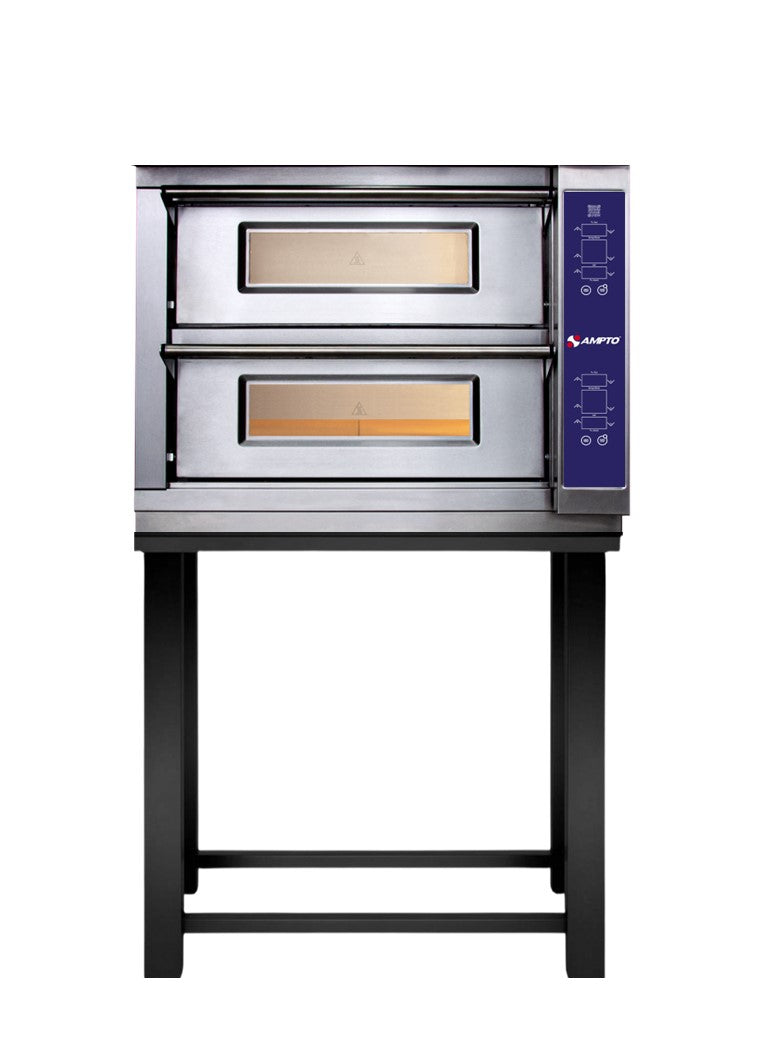

The Ampto PZA-8US is a double deck electric pizza oven with two 28.35 x 28.35 inch refractory brick decks, holding 8 pizzas of 12 inches per load at up to 842 F. It runs on 220V three phase power and is made in Italy.

Independent Top and Bottom Heat with a Brick Deck

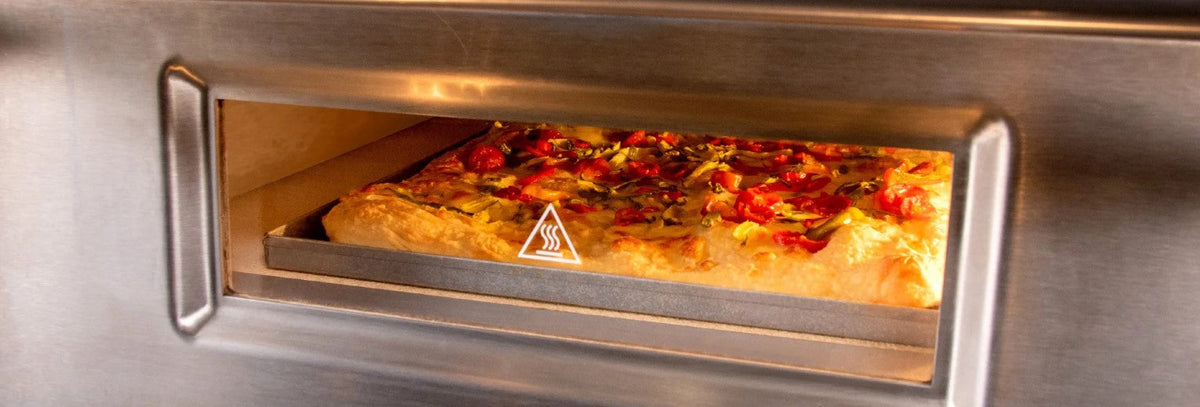

Each deck has independent top and bottom heat control, so the floor can be set hotter or cooler than the crown to balance a crisp base against topping color. The baking surface is removable refractory brick, the deck interior is aluminized steel, and mineral wool insulation surrounds the chamber. Armored heating elements, halogen lighting, a baking timer and an independent temperature safety device are standard.

Two Square Decks in a 39 Inch Width

The PZA-8US stacks two 28.35 x 28.35 inch decks, the same deck used in the single deck PZA-4US, for eight 12 inch pizzas at once in a 39 inch wide footprint. Operations that need 18 inch capacity on both decks should look at the wider PZA-12US.

34 Amps on a Three Phase Circuit

The standard PZA-8US runs on 220V three phase power and draws 34 amps, with Ampto recommending AWG 4x8 wire and a NEMA 15-50P plug. Average consumption is listed at 6 kWh. The oven ships wired with no plug attached. A single phase version is available as an option, drawing 58 amps, and Ampto specifies it as hardwired. A painted steel stand is included and ships unassembled; casters, a top front steam collector for direct ventilation, and a stacking kit are optional.

Specifications

Model PZA-8US
Series PZA
Type Electric pizza deck oven
Decks 2
Deck Interior Dimensions 28.35 x 28.35 in. (W x D)
12 Inch Pizza Capacity 4 per deck
18 Inch Pizza Capacity 1 per deck
18 x 26 Inch Tray Capacity 1 per deck
Max Temperature 842 F (450 C)
Baking Surface Refractory brick, removable
Door Stainless steel, bottom hinged, tempered glass
Exterior Dimensions 39 in. W x 45.75 in. D x 65.75 in. H (with stand)
Net Weight 386 lbs
Shipping Weight 437 lbs
Electrical 220V, 60/50 Hz, 3 phase (single phase version optional)
Average Consumption 6 kWh
Amperage 34 A (3 phase); 58 A (optional single phase)
Recommended Wire AWG 4x8 (3 phase)
Plug Wired, no plug supplied; NEMA 15-50P recommended (3 phase), Hardwire (single phase)
Construction Stainless steel front, painted steel sides and back
Stand Painted steel, included, ships unassembled
Certifications cETLus, CE
Country of Origin Italy

Warranty

Ampto covers the PZA series with a 1-year parts and labor warranty, valid in the US only. The warranty must be activated through Ampto's warranty registration.
