Product Description

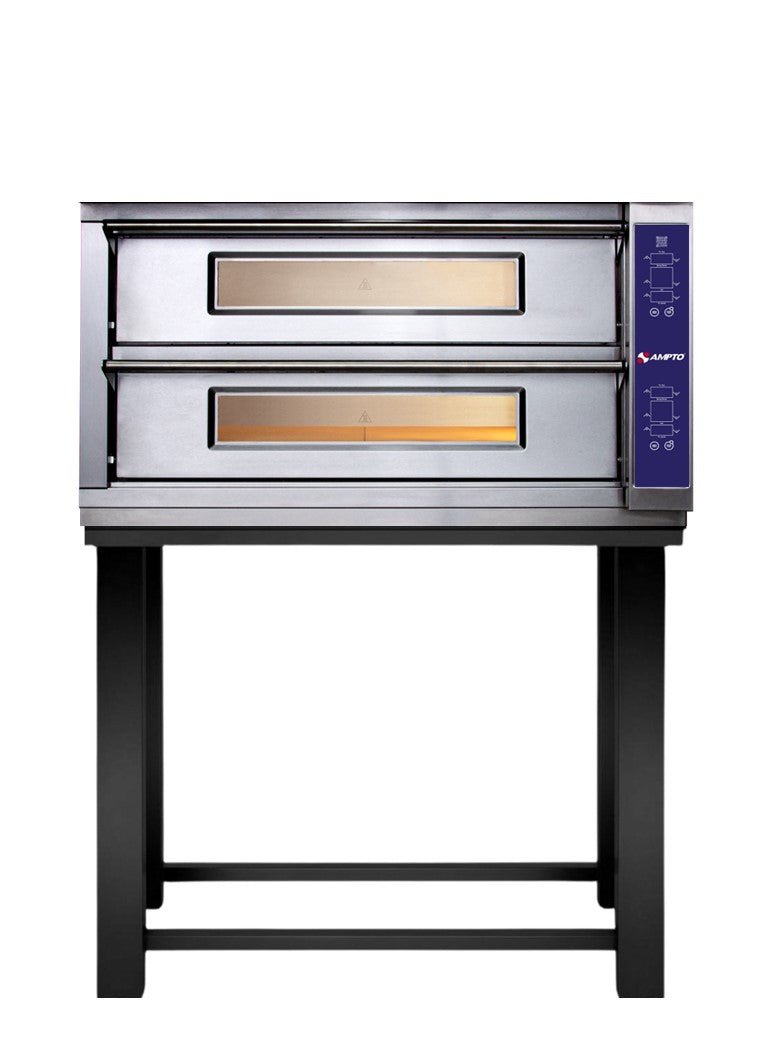

The Ampto PZA-12US is a double deck electric pizza oven with two 41.57 x 26 inch refractory brick decks, holding 12 pizzas of 12 inches per load at up to 842 F. It runs on 220V three phase power and is made in Italy.

Independent Top and Bottom Heat with a Brick Deck

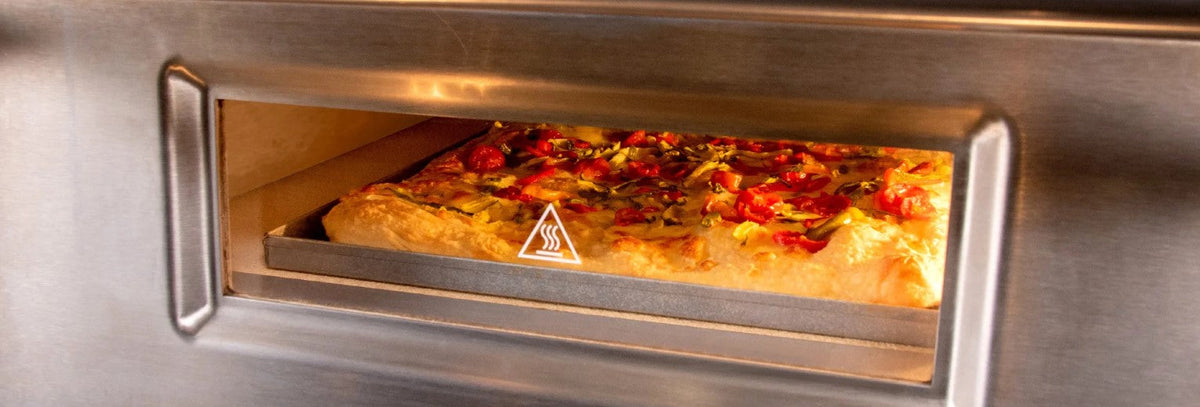

Each deck has independent top and bottom heat control, so the floor can be set hotter or cooler than the crown to balance a crisp base against topping color. The baking surface is removable refractory brick, the deck interior is aluminized steel, and mineral wool insulation surrounds the chamber. Armored heating elements, halogen lighting, a baking timer and an independent temperature safety device are standard.

Twelve Pizzas Across Two Wide Decks

The PZA-12US stacks two of the 41.57 x 26 inch decks used in the PZA-6US, for twelve 12 inch pizzas, four 18 inch pizzas, or four 18 x 26 inch trays per load. It is the highest capacity model in the PZA line short of the three deck PZA-18US.

45 Amps on a Three Phase Circuit

The standard PZA-12US runs on 220V three phase power and draws 45 amps, with Ampto recommending AWG 4x6 wire and a NEMA 15-50P plug. Average consumption is listed at 8.2 kWh. The oven ships wired with no plug attached. A single phase version is available as an option, drawing 78 amps, and Ampto specifies it as hardwired. A painted steel stand is included and ships unassembled; casters, a top front steam collector for direct ventilation, and a stacking kit are optional.

Specifications

Model PZA-12US
Series PZA
Type Electric pizza deck oven
Decks 2
Deck Interior Dimensions 41.57 x 26 in. (W x D)
12 Inch Pizza Capacity 6 per deck
18 Inch Pizza Capacity 2 per deck
18 x 26 Inch Tray Capacity 2 per deck
Max Temperature 842 F (450 C)
Baking Surface Refractory brick, removable
Door Stainless steel, bottom hinged, tempered glass
Exterior Dimensions 52 in. W x 43.5 in. D x 65.75 in. H (with stand)
Net Weight 441 lbs
Shipping Weight 492 lbs
Electrical 220V, 60/50 Hz, 3 phase (single phase version optional)
Average Consumption 8.2 kWh
Amperage 45 A (3 phase); 78 A (optional single phase)
Recommended Wire AWG 4x6 (3 phase)
Plug Wired, no plug supplied; NEMA 15-50P recommended (3 phase), Hardwire (single phase)
Construction Stainless steel front, painted steel sides and back
Stand Painted steel, included, ships unassembled
Certifications cETLus, CE
Country of Origin Italy

Warranty

Ampto covers the PZA series with a 1-year parts and labor warranty, valid in the US only. The warranty must be activated through Ampto's warranty registration.
