Product Description

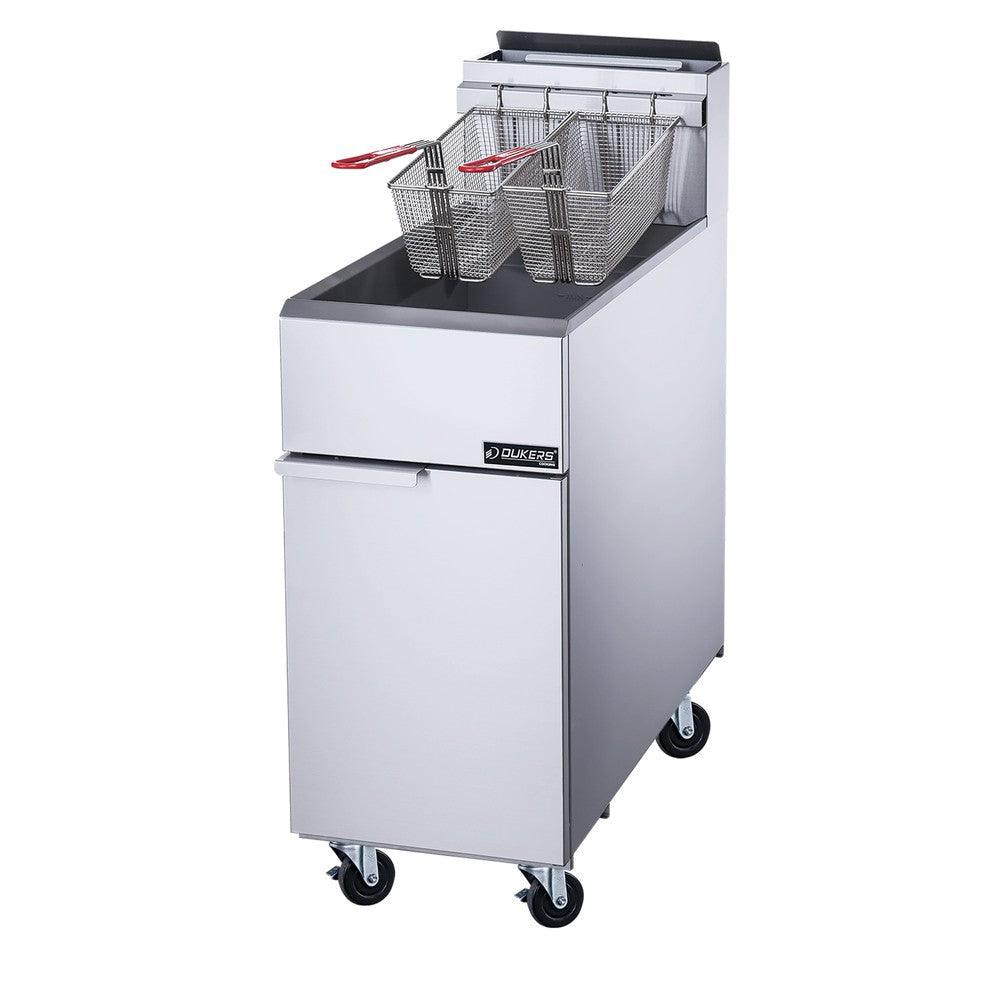

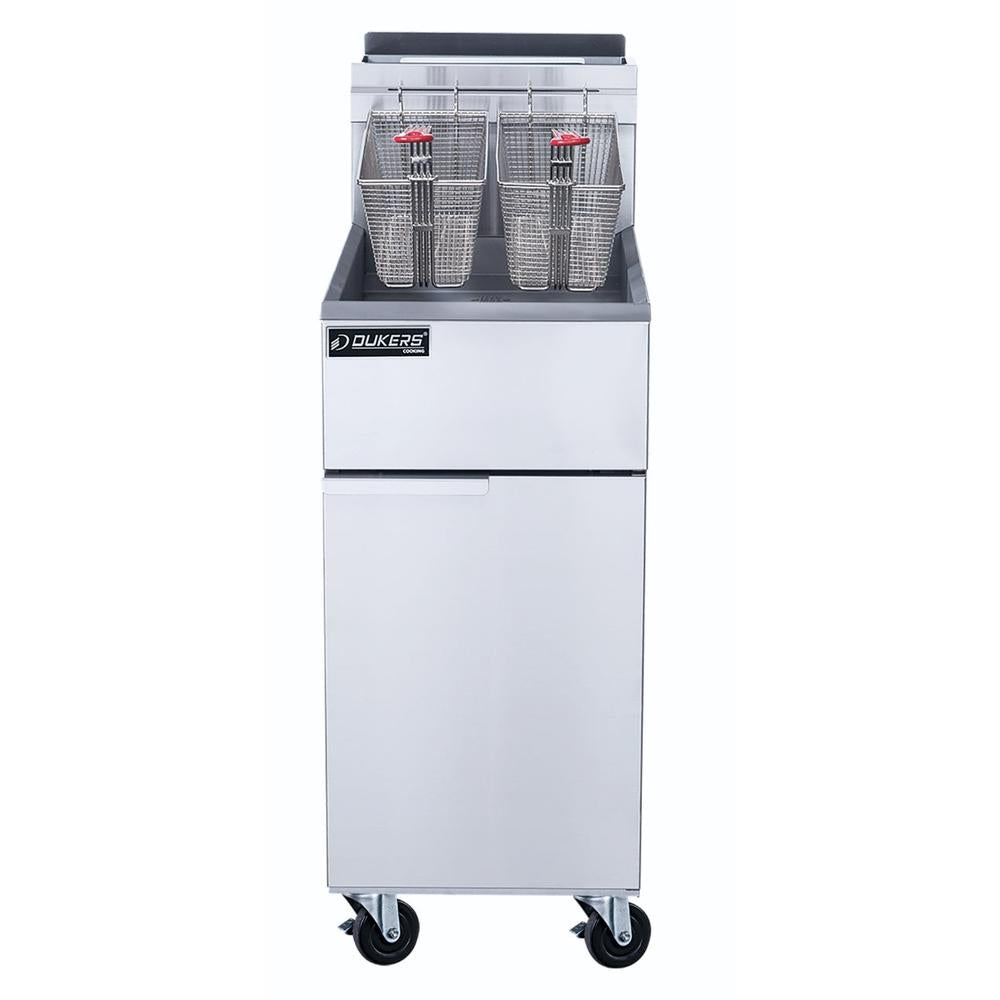

The Dukers DCF4-LPG is a floor-standing liquid propane deep fryer holding 50 lbs of oil, with four tube burners producing 120,000 BTU/H combined. It shares the 15-1/2 inch width of the three-burner model, so the additional oil volume and heat come at no cost in line space.

Propane configuration

This fryer ships set up for liquid propane at 10" W.C. — orifices, regulator and pilot are all matched to LP. Confirm the site's fuel before ordering: the natural gas equivalent is the DCF4-NG, and swapping fuel types without the correct conversion parts is both a performance and a safety problem. For catering fleets and mobile kitchens standardising on bottled gas, the LP version keeps the whole battery on one fuel.

50 lbs of oil across four burners

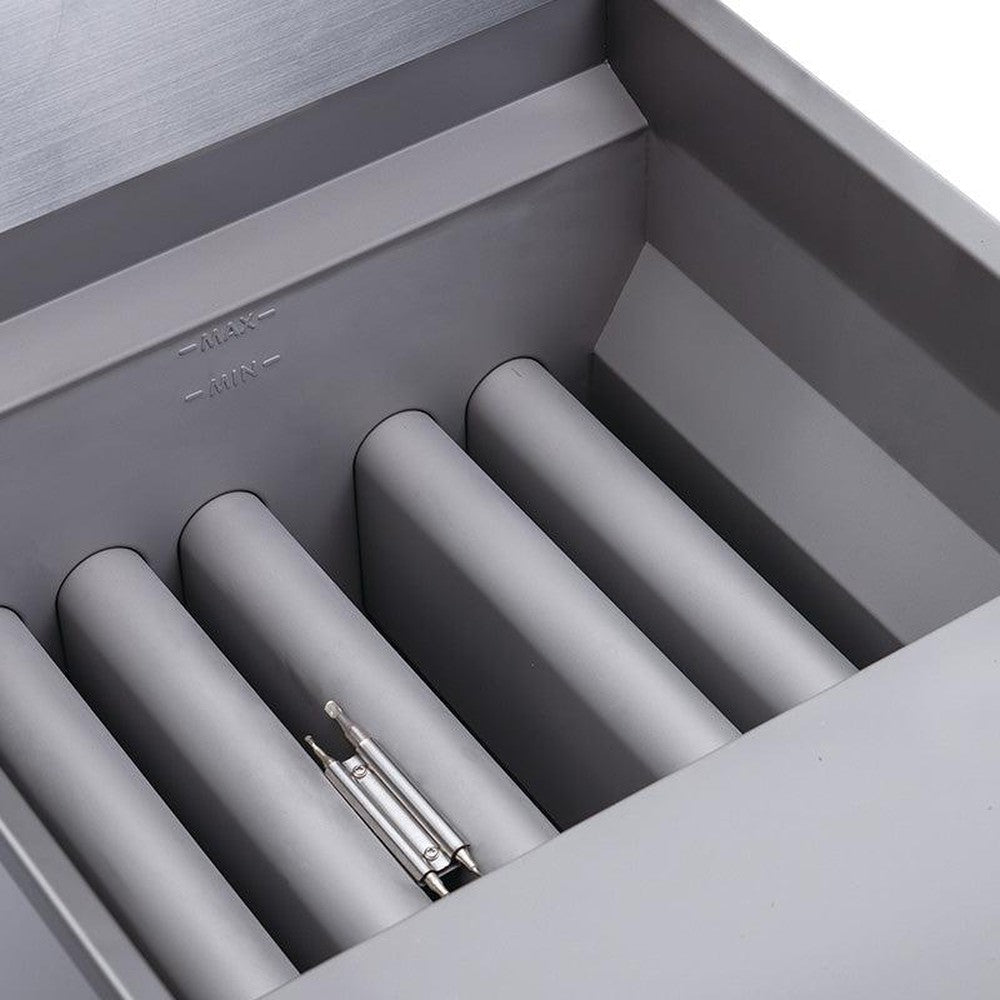

The four cast iron tube burners are rated 30,000 BTU/H each and run submerged through the oil, so heat enters along each tube's full length instead of only at the tank floor. Spreading 120,000 BTU/H over four tubes into a 50 lb reservoir does two useful things at once: it shortens recovery between drops, and it avoids the concentrated hot spots that break oil down early and shorten how long a change of oil lasts.

Controls and placement

A millivolt safety control system holds any setting between 200°F and 400°F without needing an electrical supply. The cabinet is 32-7/8" deep and 45" tall; net weight is 176.37 lbs and it arrives crated at 37-5/8" x 17-7/8" x 35-3/8", so plan for a freight delivery rather than a parcel drop.

Specifications

Model DCF4-LPG
Type Floor-standing gas deep fryer
Fuel Liquid propane (LP)
Oil capacity 50 lbs
Exterior dimensions (W x D x H) 15-1/2" x 32-7/8" x 45"
Crate dimensions (W x D x H) 37-5/8" x 17-7/8" x 35-3/8"
Net weight 176.37 lbs
Shipping weight 198.42 lbs
Total output 120,000 BTU/H
Burners 4 cast iron tube burners, 30,000 BTU/H each
Temperature range 200°F to 400°F (93°C to 204°C)
Controls Millivolt safety control system
Gas connection 3/4" NPT
Gas pressure 10" W.C. (liquid propane)
Warranty 1-year parts and labor; 5-year oil tank

Warranty

Dukers covers this fryer with a 1-year parts and labor warranty and a 5-year oil tank warranty from the date of purchase.
