Product Description

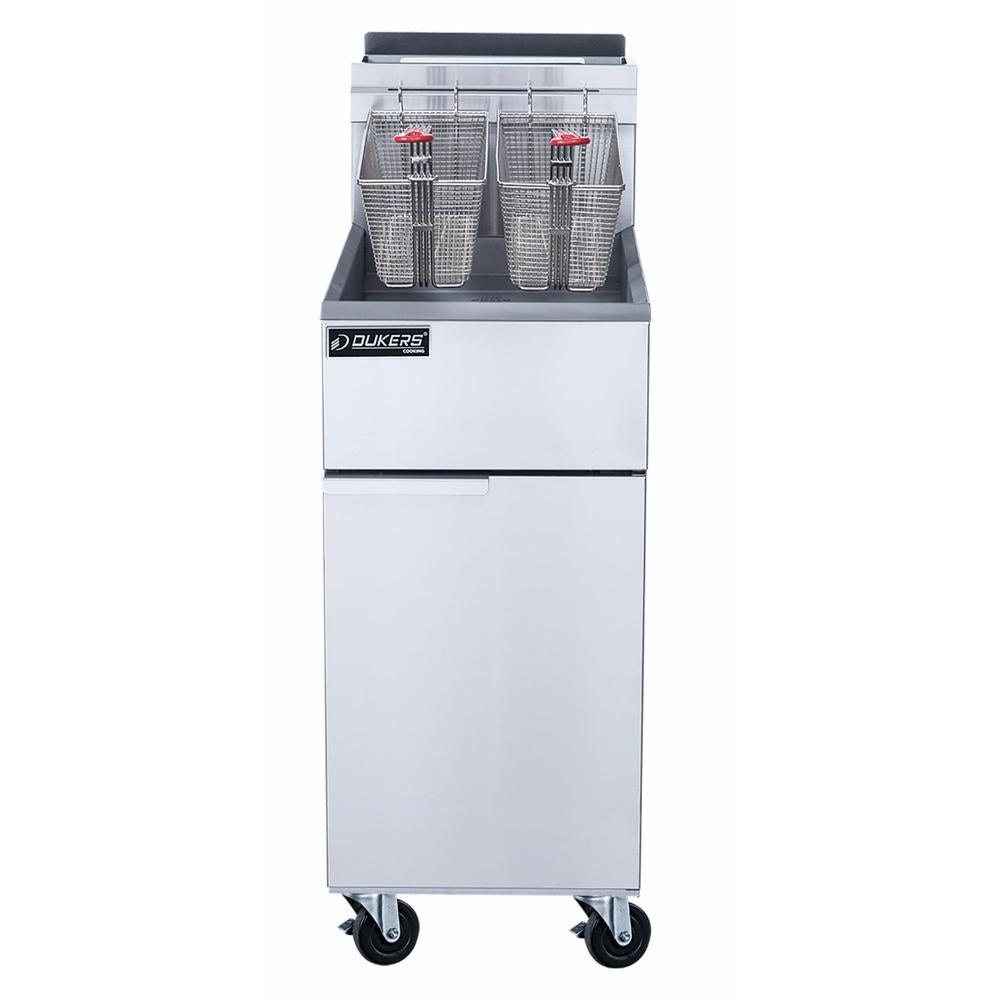

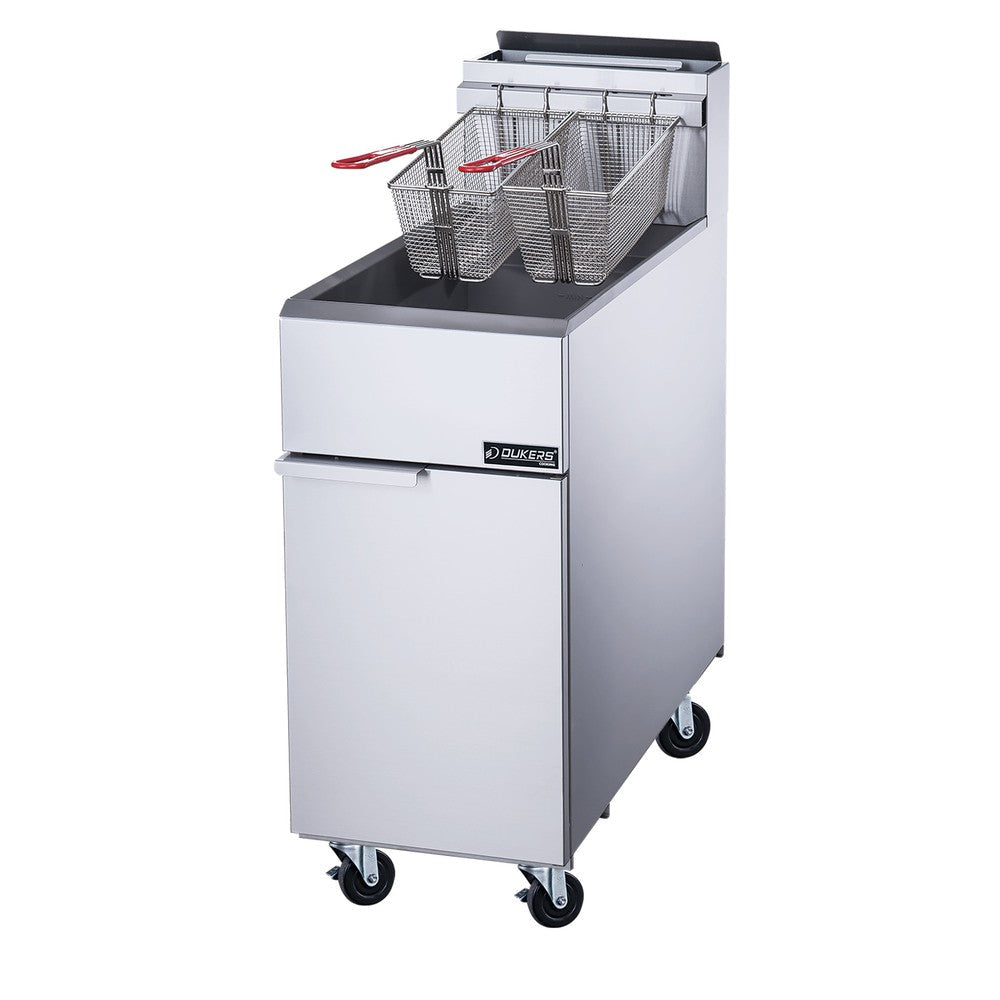

The Dukers DCF3-LPG is a floor-standing liquid propane deep fryer with a 40 lb oil capacity and three tube burners rated 90,000 BTU/H combined. Because it runs on LP rather than piped natural gas, it suits food trucks, event caterers, rural sites and anywhere a bottled fuel supply is the practical option.

Built for propane at 10" W.C.

This unit is factory-configured for liquid propane, with orifices and a regulator matched to a 10" W.C. supply. That is the single most important thing to get right when ordering: running an LP-configured fryer on natural gas, or the reverse, produces either a starved flame or a dangerously over-fired one. If the site is on piped natural gas, the correct model is the DCF3-NG.

Three tube burners in a 40 lb tank

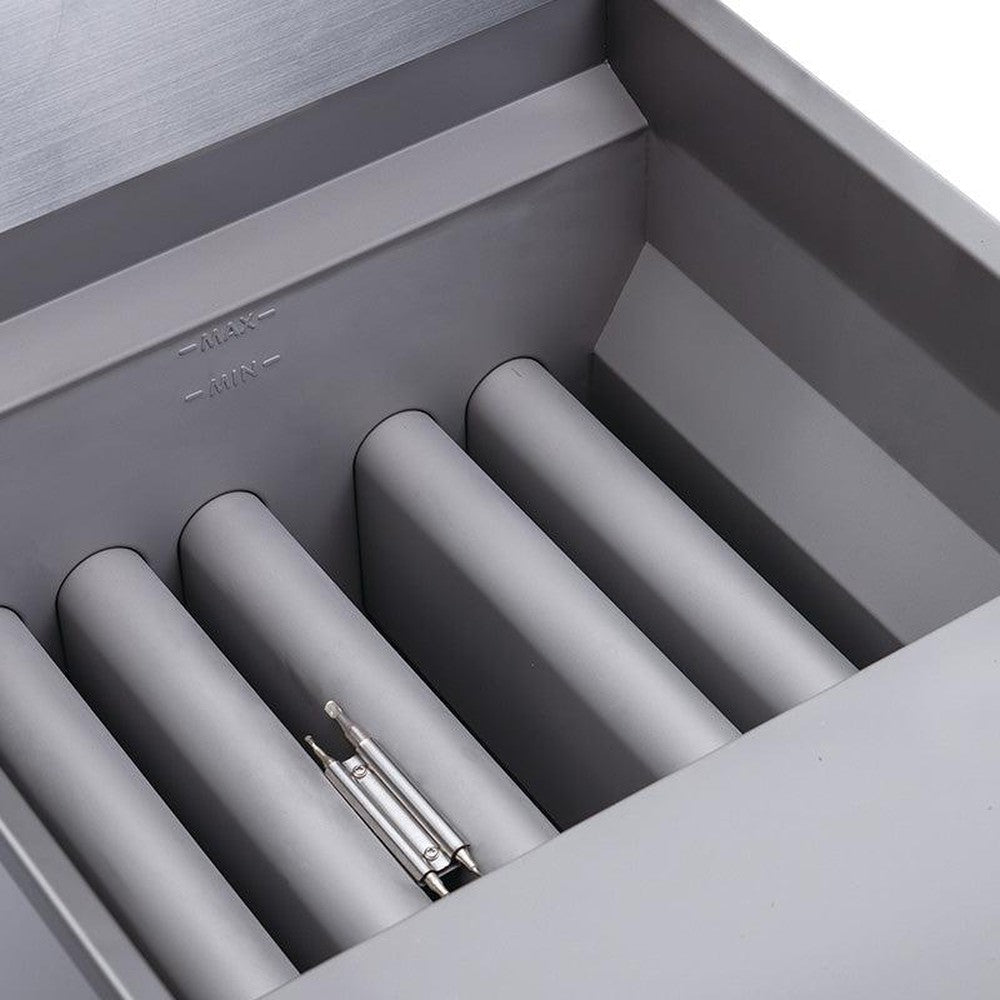

Three cast iron tube burners at 30,000 BTU/H each pass through the oil itself rather than heating the tank from underneath, putting heat into the oil along the full length of every tube. Across a 40 lb reservoir that gives the recovery speed a busy fry station needs — how fast the oil returns to setpoint after a cold basket goes in is what limits throughput far more than peak BTU does.

No electrical connection required

The millivolt safety control system operates the thermostat and gas valve over a 200°F to 400°F range from the heat of the pilot alone, so the fryer needs no power outlet. On a mobile or temporary installation that is a genuine advantage: gas bottle and a level surface, and the unit runs.

Specifications

Model DCF3-LPG
Type Floor-standing gas deep fryer
Fuel Liquid propane (LP)
Oil capacity 40 lbs
Exterior dimensions (W x D x H) 15-1/2" x 32-7/8" x 45"
Crate dimensions (W x D x H) 37-5/8" x 17-7/8" x 35-3/8"
Net weight 165.35 lbs
Shipping weight 187.39 lbs
Total output 90,000 BTU/H
Burners 3 cast iron tube burners, 30,000 BTU/H each
Temperature range 200°F to 400°F (93°C to 204°C)
Controls Millivolt safety control system
Gas connection 3/4" NPT
Gas pressure 10" W.C. (liquid propane)
Warranty 1-year parts and labor; 5-year oil tank

Warranty

Dukers covers this fryer with a 1-year parts and labor warranty and a 5-year oil tank warranty from the date of purchase.
